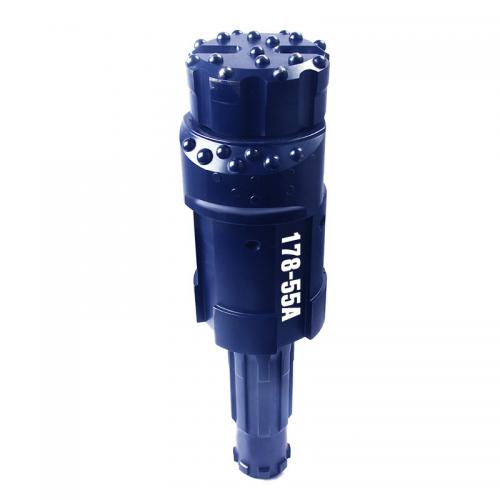

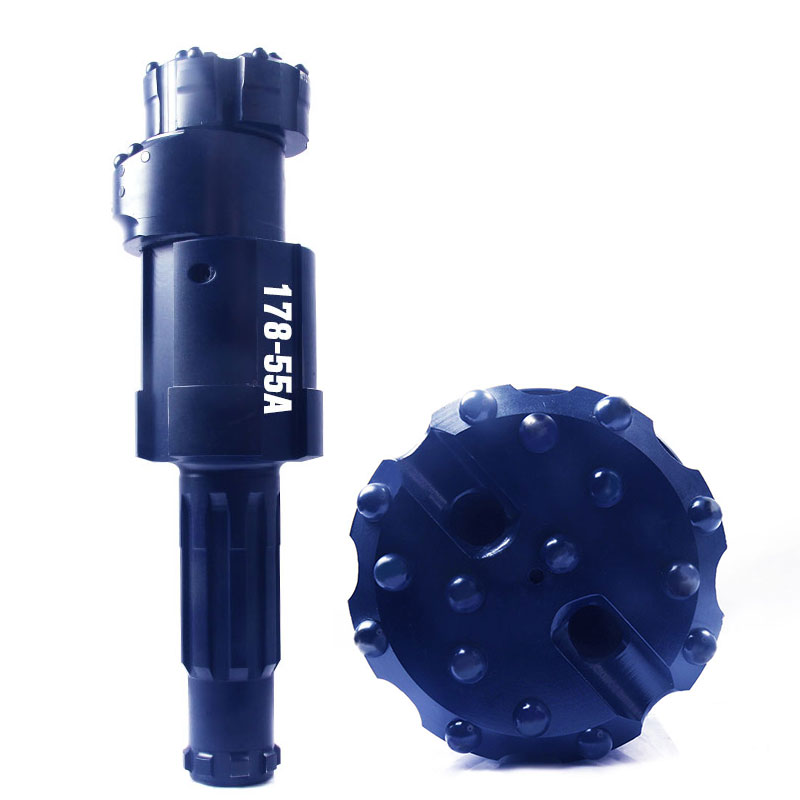

DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits

DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits
  • DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits - 0
  • DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits - 1
  • DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits - 2
  • DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits - 3
DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits
Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 178-DHD350
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 10000 pieces per month

Email This Page  Contact Now
  • Product Description
  • 1   Processing type: Forging
  • 2   Color: As request
  • 3   Advantage: High-efficiency
  • 4   DTH hammer size: 8 inch
  • 5   Face Shape: Flat, Concave & Covex face
  • 6   Carbide button shape: Parabolic, Ballistic & Domed
  • 7   Material: Tungsten carbide and hard alloy steel
  • DTH eccentric overburden casing drilling system 178-DHD350 casing drilling bits

Eccentric casing System

Hardening treatment of the part’s surface:with longer operating life and excellent anti-wear properties.

Structural optimization:Strengthen the structural strength, easy to operate

Superior performance:Stable and reliable performance, high drilling speed

Working Principle of Drill:

1.When start drilling , the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.

2.When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in. Allowing the drill bit assembly to be pulled up through the casing.

3.Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.

4.Drilling continues to the desired depth in the bedrock using a conventional drilling.


---------------------------------------------FAQ---------------------------------------

Q:Why choose us?

A:High-quality products, reasonable price, professional team work..


Q:Which industry can use our products?

A:Mining, tunnel, foundation pit, quarry, oil, well, etc..


Q:Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.
