High pressure ODex drilling system concentric drill bit 219-DHD360

High pressure ODex drilling system concentric drill bit 219-DHD360
  • High pressure ODex drilling system concentric drill bit 219-DHD360 - 0
  • High pressure ODex drilling system concentric drill bit 219-DHD360 - 1
  • High pressure ODex drilling system concentric drill bit 219-DHD360 - 2
  • High pressure ODex drilling system concentric drill bit 219-DHD360 - 3
High pressure ODex drilling system concentric drill bit 219-DHD360
Quick Details:
Place of Origin: China
Brand Name: MSD
Certificate: ISO9001
Model Number: 219-DHD360
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10-25 days
Payment Terms: T/T west union L/C
Supply Ability: 10000 pieces per month

Email This Page  Contact Now
  • Product Description
  • 1   Applications: Ore, rock,mining or welling drilling
  • 2   Processing type: Forging
  • 3   Color: As request
  • 4   Advantage: High-efficiency
  • 5   DTH hammer size: 6 inch
  • 6   Face Shape: Flat, Concave & Covex face
  • 7   Carbide button shape: Parabolic, Ballistic & Domed
  • 8   Material: Tungsten carbide and hard alloy steel
  • High pressure ODex drilling system concentric drill bit 219-DHD360

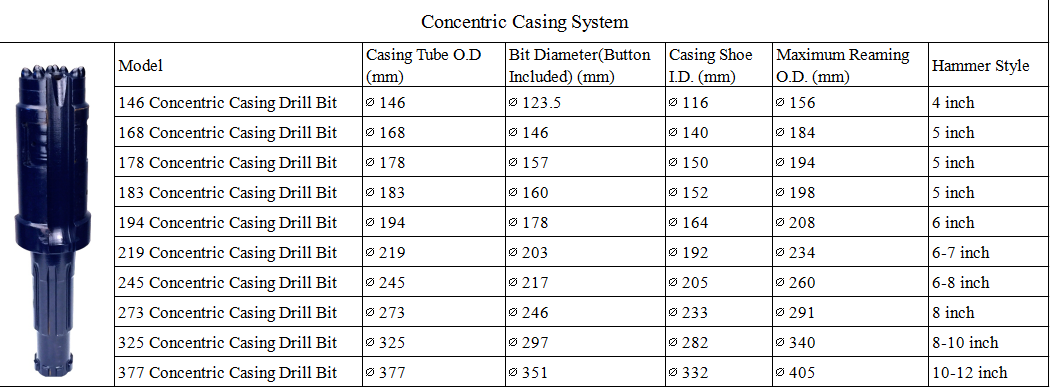

Concentric Casing System

Working Principle of Drill:

1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit' shoulder engages the shoulder of the casing shoe.

2. Hammer's percussive energy is transferred through the pilot and ring bit, crusing rock. Part of impact energy advances casing.

3. On completion of drilling and casing, the drill string wit pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling. The ring bit stays in the hole, and can be recovered only if the casing is retrieved.

4. If further drilling is required on the bedrock, the pilot bit is simply replaced by an appropriate size of standard DTH bit.


Advantages of Concentric Drilling:

1. Drilling straight and fast.

2.The torque for Concentric drilling is much less than for eccentric drilling

3. Easily unlocking-relocking.

4. Drilling in any angle.

5. Effective cuttings discharge.

6. Easy-to-operate and system security.

7. Economical and cost-effective.
