4" MISSION40 Shank DTH Hammer for Reliable Performance | MSD

4" MISSION40 Shank DTH Hammer for Reliable Performance | MSD
  • A 4-inch MISSION40 shank DTH hammer, known for its reliable performance

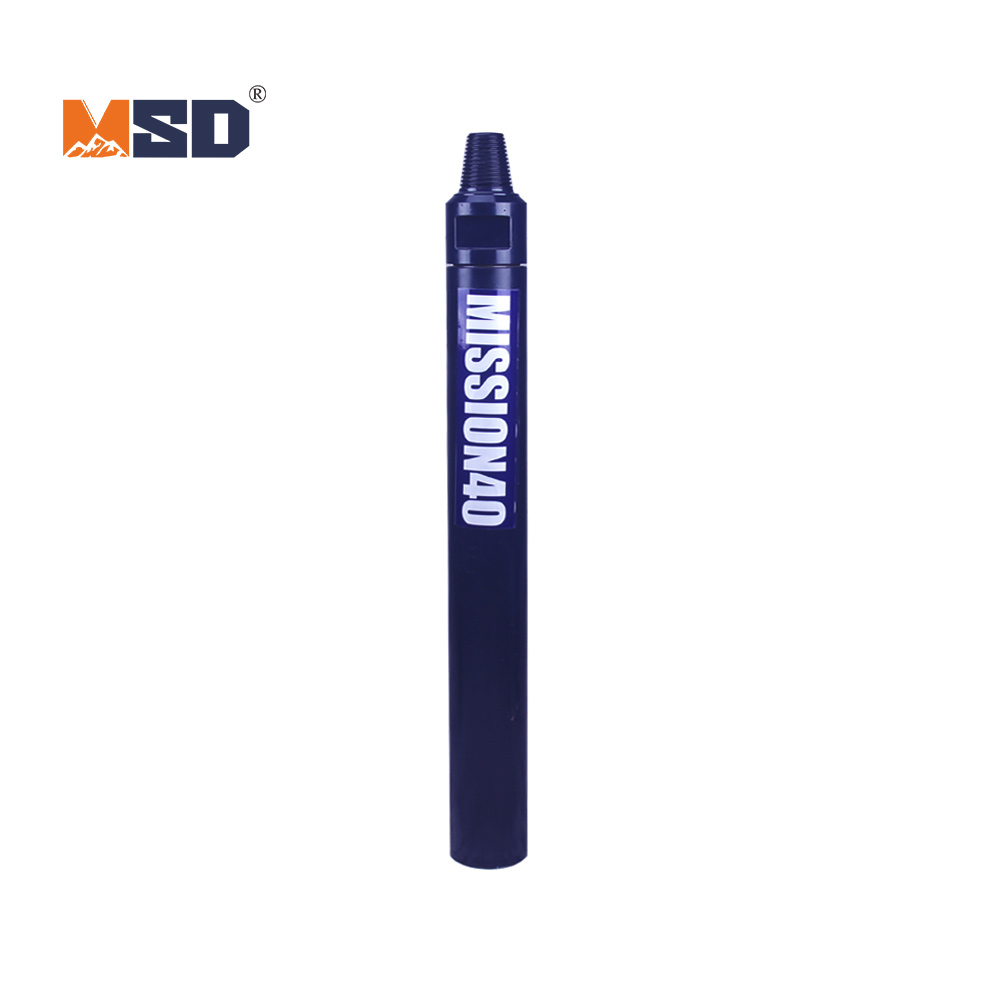

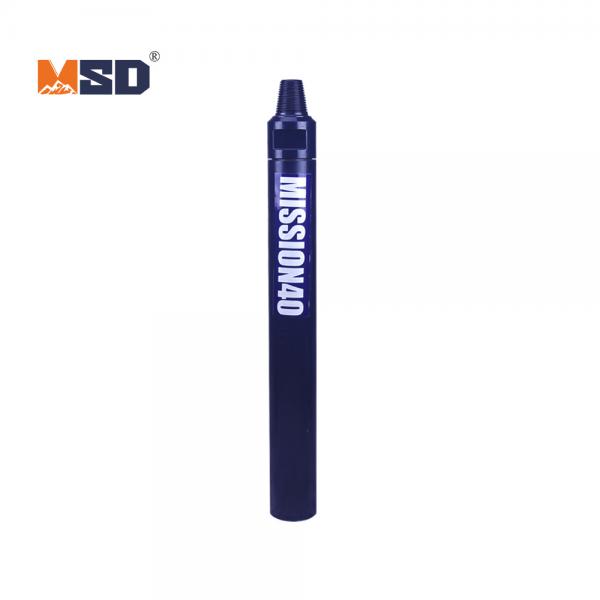

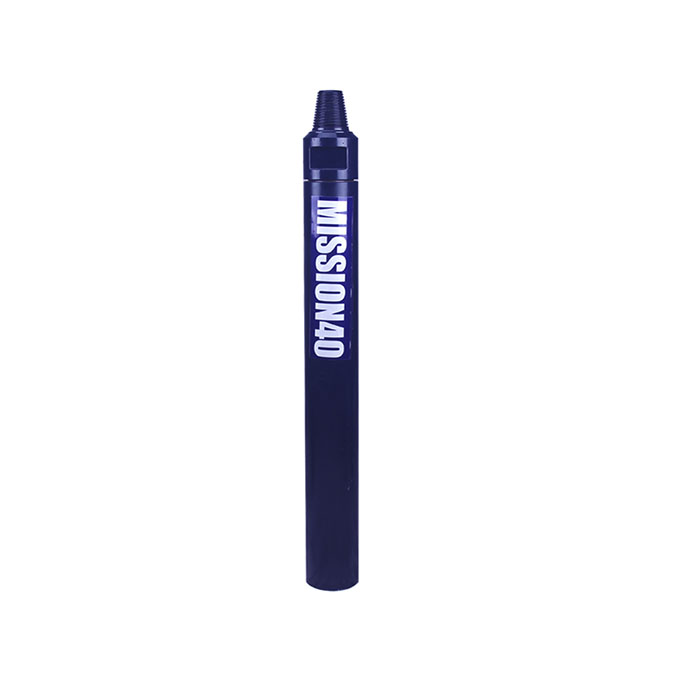

4" MISSION40 Shank DTH Hammer
Seeking a proven, high-reliability hammer? Discover the MSD MISSION40. This 4" hammer is a globally trusted design for consistent performance in mining and construction. Get the job done right. Explore specs!
Model Number: MSD-MISSION40
Size: 4 inch
Shank Type: MISSION40
Piston Design: High-Reliability Valveless
Primary Application: Mining, Construction, Geotechnical

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Proven Industry Design: The MISSION40 shank design is a globally recognized standard, valued for its exceptional reliability and consistent performance in a variety of drilling conditions.

  • Efficient Valveless Operation: Features a simple yet powerful valveless piston design that ensures a high rate of penetration while minimizing air consumption and maintenance needs.

  • Robust and Long-Lasting: Constructed from high-grade, heat-treated steel to withstand the rigors of daily drilling, ensuring a long and productive service life.

  • Smart Economic Choice: Offers the dependable performance of a globally recognized standard at a superior value, making it a smart, cost-effective investment for your fleet.

Recommended Applications

  • General Mining and Quarrying: A trusted, all-around performer for blast hole drilling in small to medium-sized mining and quarrying operations.

  • Construction and Geotechnical: Its reliability makes it an excellent choice for foundation, anchoring, and site investigation drilling.

  • Water Well Drilling: A powerful and dependable hammer for drilling residential and commercial water wells.

Technical Specifications

Overall Length

1005 mm

Outer Diameter

99 mm

Weight

40 kg

Hole Diameter Range

110 mm - 135 mm

Connection Thread

API 2 3/8"Reg

Operating Air Pressure

1.2-2.0Mpa

Recommended Rotation Speed

25-40r/min

Air Consumption

1.0Mpa:5m3/min

1.8Mpa:9m3/min

2.4Mpa:14m3/min


Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
