6" QL60 Shank DTH Hammer for Heavy-Duty Production | MSD

6" QL60 Shank DTH Hammer for Heavy-Duty Production | MSD
  • A 6-inch QL60 shank DTH hammer for heavy-duty production

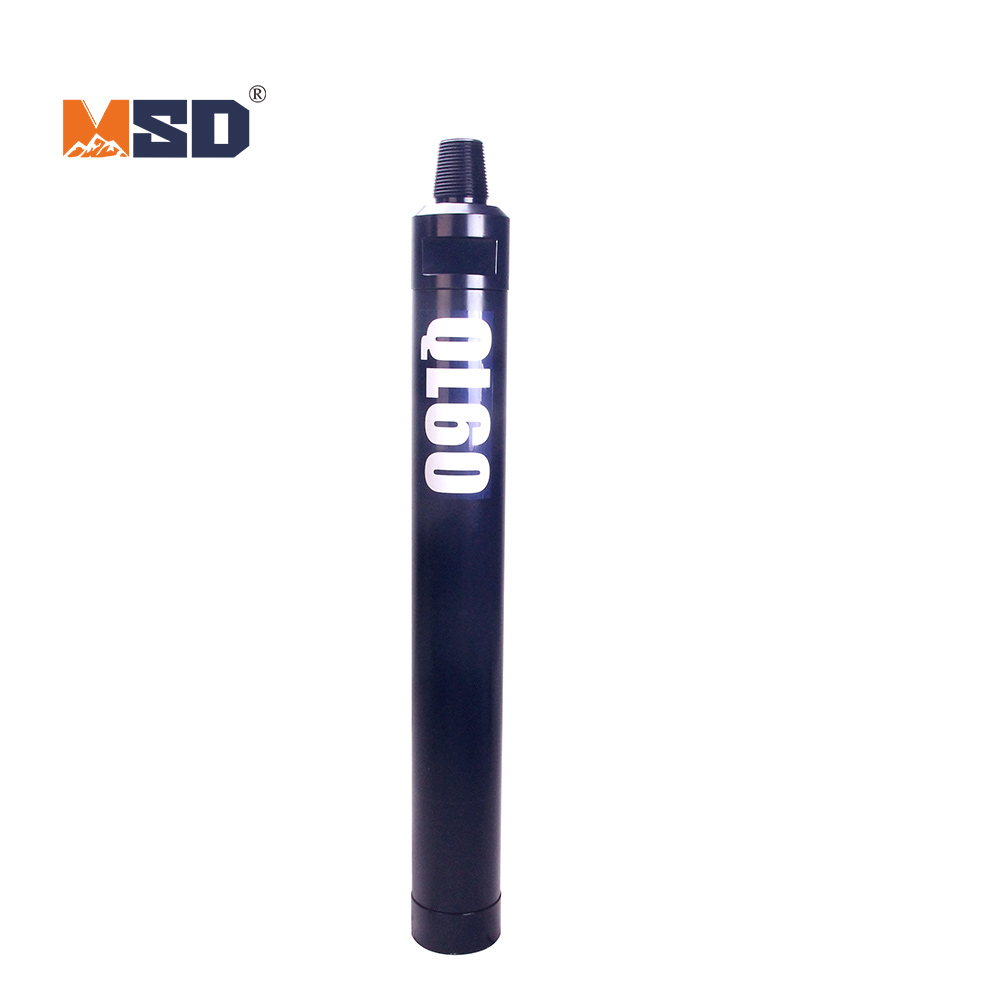

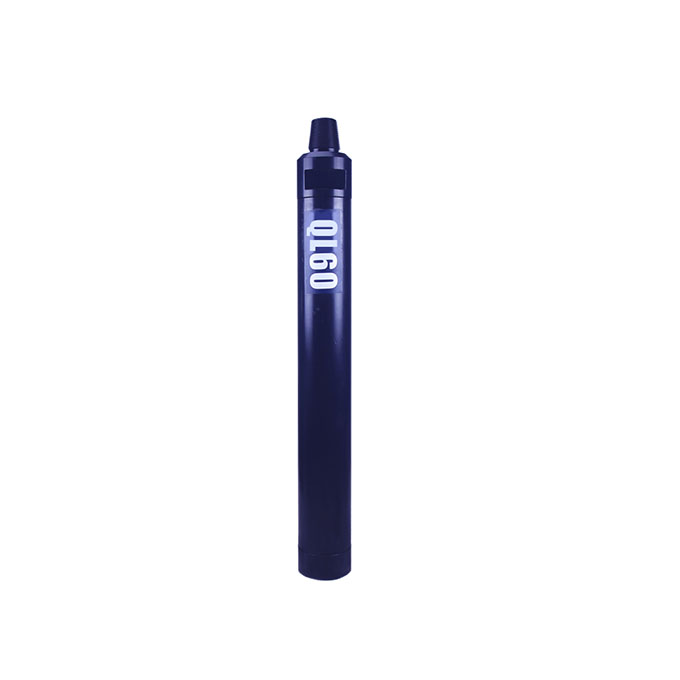

6" QL60 Shank DTH Hammer
The ultimate choice for heavy-duty production in hard rock. Our 6" QL60 DTH Hammer is built for maximum power, speed, and endurance. Maximize your performance and profitability. Explore specs!
Model Number: MSD-QL60
Size: 6 inch
Shank Type: QL60
Piston Design: Heavy-Duty Valveless
Primary Application: Heavy-Duty Mining, Hard Rock Quarrying

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Maximum Impact Energy: The QL60 is a heavy-duty hammer engineered to deliver maximum impact power, making it a top performer in the most demanding drilling applications.

  • Efficient Valveless Technology: Its proven valveless design ensures optimal energy transfer and the highest possible penetration rates, while maintaining excellent reliability.

  • Built for Abrasive Conditions: Features a robust construction with a heavy-duty piston and wear-resistant components to ensure a long service life in tough and abrasive hard rock.

  • Lowest Cost-Per-Meter: Delivers exceptional productivity and durability, resulting in a low total cost-per-meter drilled and maximizing your project's profitability.

Recommended Applications

  • Heavy-Duty Hard Rock Mining and Quarrying: The ideal choice for high-volume production drilling in large open-pit mines and quarries with challenging geology.

  • Deep Hole Drilling: Its power and reliability make it a top performer in deep hole applications, such as geothermal, water well, and gas exploration.

  • Major Infrastructure Projects: A trusted tool for large-scale construction and foundation projects requiring large-diameter holes in hard rock.

Technical Specifications

Overall Length

1183 mm

Outer Diameter

146 mm/ 148 mm

Weight

92 kg

Hole Diameter Range

155 mm - 203 mm

Connection Thread

API 3 1/2'Reg

Operating Air Pressure

1.5-2.5Mpa

Recommended Rotation Speed

20-30r/min

Air Consumption

1.0Mpa:9m3/min

1.8Mpa:18m3/min

2.4Mpa:26m3/min


Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
