168mm Concentric Casing System for Large Foundation Piles | MSD

168mm Concentric Casing System for Large Foundation Piles | MSD
  • A complete concentric casing system for 168mm casing for large foundation piles
Concentric Overburden Casing System for 168mm Casing
The ultimate solution for large, cased piles. Our 168mm Concentric Casing System, powered by a DHD350 class pilot bit, drills and cases simultaneously, ensuring perfect hole integrity. For your most critical projects. Explore the system!

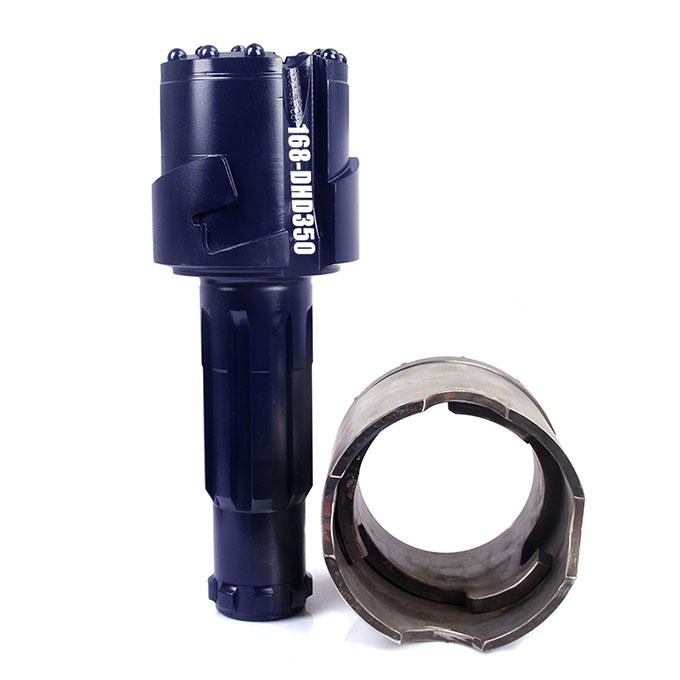

Model Number: MSD-CCS-D350-168
System Type: Concentric Overburden Casing System
Casing Outer Diameter: 168 mm (6.6")
Pilot Bit Shank: DHD350
Primary Application: Large Piling, Civil Engineering, Slope Stabilization

Email This Page  Contact Now
  • Product Description

The Challenge: Drilling in Difficult Ground

Drilling through loose overburden like sand, gravel, or backfill often leads to collapsing holes, stuck equipment, and significant project delays. In fractured or weathered rock, borehole integrity is constantly at risk, making it nearly impossible to achieve a clean, stable hole for piling or anchoring. These challenging ground conditions demand more than just a standard drill bit—they require a complete engineered system.

Our Solution: Simultaneous Drilling and Casing

MSD's Concentric Casing System is the definitive solution to these challenges. This advanced system features a pilot bit and a ring bit that work in unison. As the pilot bit drills the center of the hole, the ring bit simultaneously expands the hole to a larger diameter, allowing the 168mm steel casing to advance down with the drill string. This innovative process drills and cases the hole at the same time, completely securing the borehole wall from the moment drilling begins.

Key Features and Advantages

  • Guaranteed Borehole Integrity: By casing the hole as it is drilled, this system completely eliminates the risk of hole collapse, ensuring a clean and stable large-diameter borehole for your most critical projects.

  • Exceptional Hole Straightness: The concentric design provides superior guidance, delivering perfectly straight holes which is essential for the structural integrity of deep, large-diameter foundation piles.

  • Powered by DHD350 Class Hammers: The pilot bit features a DHD350 shank, designed to handle the higher impact power of 5-inch class DTH Hammers for faster drilling through tough overburden.

  • System Reusability: After reaching the desired depth into bedrock, the pilot bit is easily retracted through the casing for use on the next hole, making the system a highly cost-effective investment.

Primary Applications

  • Large Foundation Piling: The primary application. Ideal for major construction and infrastructure projects requiring 168mm piles to be drilled through challenging ground conditions.

  • Slope Stabilization and Anchoring: A perfect system for installing deep, large-diameter ground anchors for major projects like highways and dams.

  • Large-Diameter Water Well Casing: An essential tool for setting the surface casing for large-capacity industrial or municipal water wells.

Technical Specifications

MSD-CCS-D350-168 Concentric Overburden Casing System

Casing Outer Diameter (OD)

168mm

Casing Inner Diameter (ID)

142.6mm

Casing Wall Thickness

12.7mm

Drilled Hole Diameter

141mm

Pilot Bit Diameter

12.7mm

Compatible Shank Type

COP54/DHD350/TH5/SD5/QL50

Max. Pass-Through Diameter

125mm

Weight

27kg

Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!


Send your inquiry directly to us

Click here
