127mm Concentric Casing System for Water Well Casing | MSD

127mm Concentric Casing System for Water Well Casing | MSD
  • A concentric casing system for 127mm (5-inch) casing, ideal for water wells
Concentric Overburden Casing System for 127mm Casing
Secure your water wells in loose soil. Our 127mm (5-inch) Concentric Casing System drills and cases simultaneously, providing a stable borehole through overburden. The reliable solution for well contractors. Explore the system!

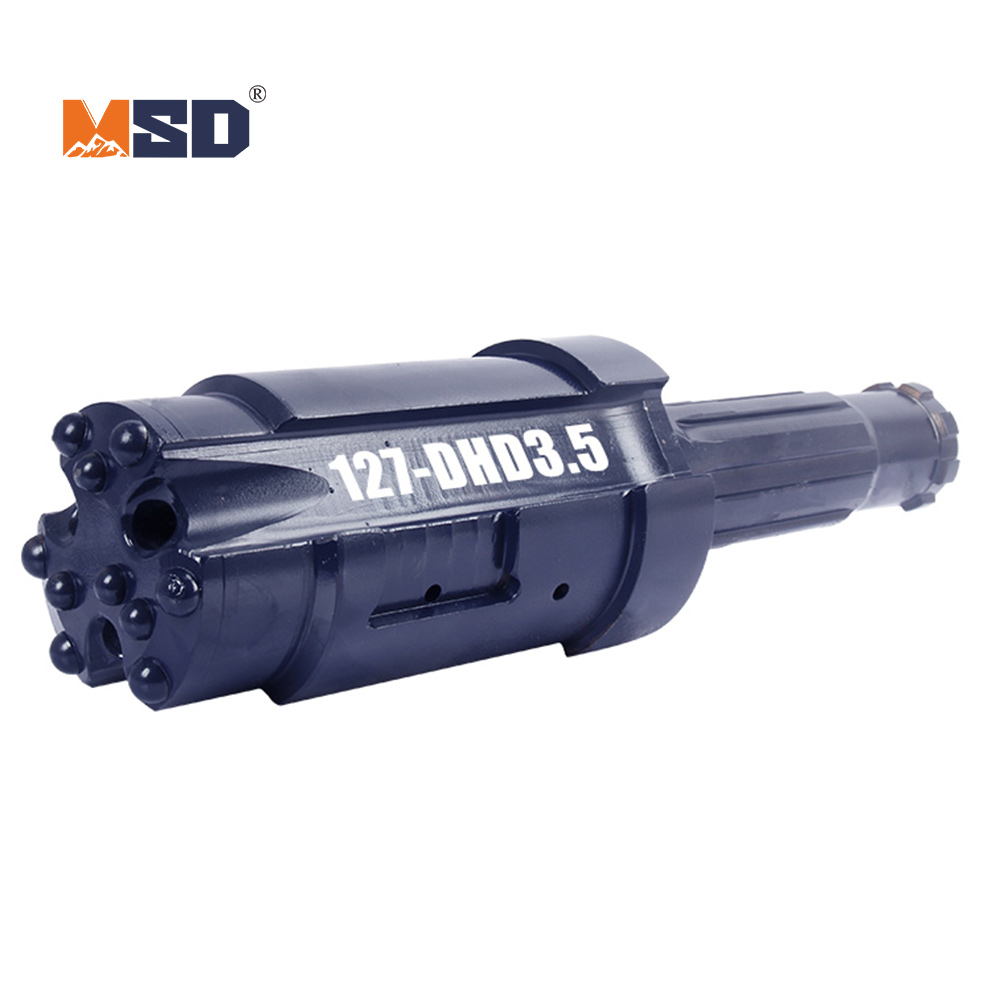

Model Number: MSD-CCS-D3.5-127
System Type: Concentric Overburden Casing System
Casing Outer Diameter: 127 mm (5")
Pilot Bit Shank: DHD3.5
Primary Application: Water Well Casing, Geothermal, Piling

Email This Page  Contact Now
  • Product Description

The Challenge: Drilling in Difficult Ground

Drilling through loose overburden like sand, gravel, or backfill often leads to collapsing holes, stuck equipment, and significant project delays. In fractured or weathered rock, borehole integrity is constantly at risk, making it nearly impossible to achieve a clean, stable hole for piling or anchoring. These challenging ground conditions demand more than just a standard drill bit—they require a complete engineered system.

Our Solution: Simultaneous Drilling and Casing

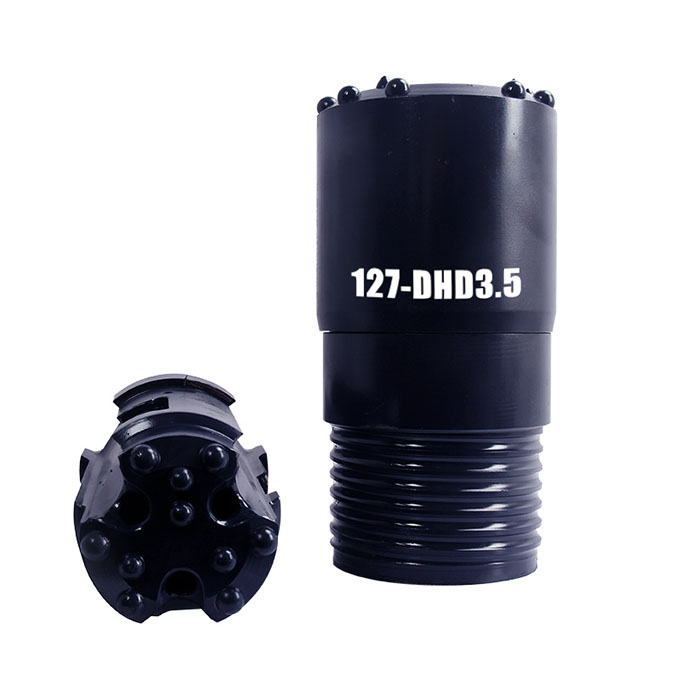

MSD's Concentric Casing System is the definitive solution to these challenges. This advanced system features a pilot bit and a ring bit that work in unison. As the pilot bit drills the center of the hole, the ring bit simultaneously expands the hole to a larger diameter, allowing the 127mm steel casing to advance down with the drill string. This innovative process drills and cases the hole at the same time, completely securing the borehole wall from the moment drilling begins.

Key Features and Advantages

  • Guaranteed Borehole Integrity: By casing the hole as it is drilled, this system completely eliminates the risk of hole collapse, ensuring a clean and stable 5-inch borehole.

  • Exceptional Hole Straightness: The concentric design provides superior guidance, delivering perfectly straight holes that are critical for deep water wells and geothermal loops.

  • Optimized for DHD3.5 Hammers: The pilot bit is designed with a DHD3.5 shank, ensuring perfect compatibility and efficient energy transfer from one of the industry's most reliable 3.5-inch DTH Hammers.

  • System Reusability: After reaching the desired depth into bedrock, the pilot bit is easily retracted through the casing for use on the next hole, making the system a highly cost-effective investment.

Primary Applications

  • Water Well Casing: The ideal application for setting the surface casing for 5-inch water wells, ensuring a secure and stable well start through any overburden.

  • Geothermal Boreholes: A perfect tool for drilling and casing geothermal loops, especially in residential or commercial projects with difficult ground conditions.

  • Foundation Piling: A reliable system for creating 127mm foundation piles for buildings and other structures.

Technical Specifications

MSD-CCS-D3.5-127 Concentric Overburden Casing System

Casing Outer Diameter (OD)

127mm

Casing Inner Diameter (ID)

107mm

Casing Wall Thickness

10mm

Drilled Hole Diameter

105mm

Pilot Bit Diameter

10mm

Compatible Shank Type

COP34/DHD3.5/TH3.5

Max. Pass-Through Diameter

90mm

Weight

16kg



Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!


Send your inquiry directly to us

Click here
