155mm CIR150 Low Air Pressure DTH Bit for Foundation and Piling | MSD

155mm CIR150 Low Air Pressure DTH Bit for Foundation and Piling | MSD
  • A 155mm CIR150 shank low air pressure DTH bit for foundation and piling

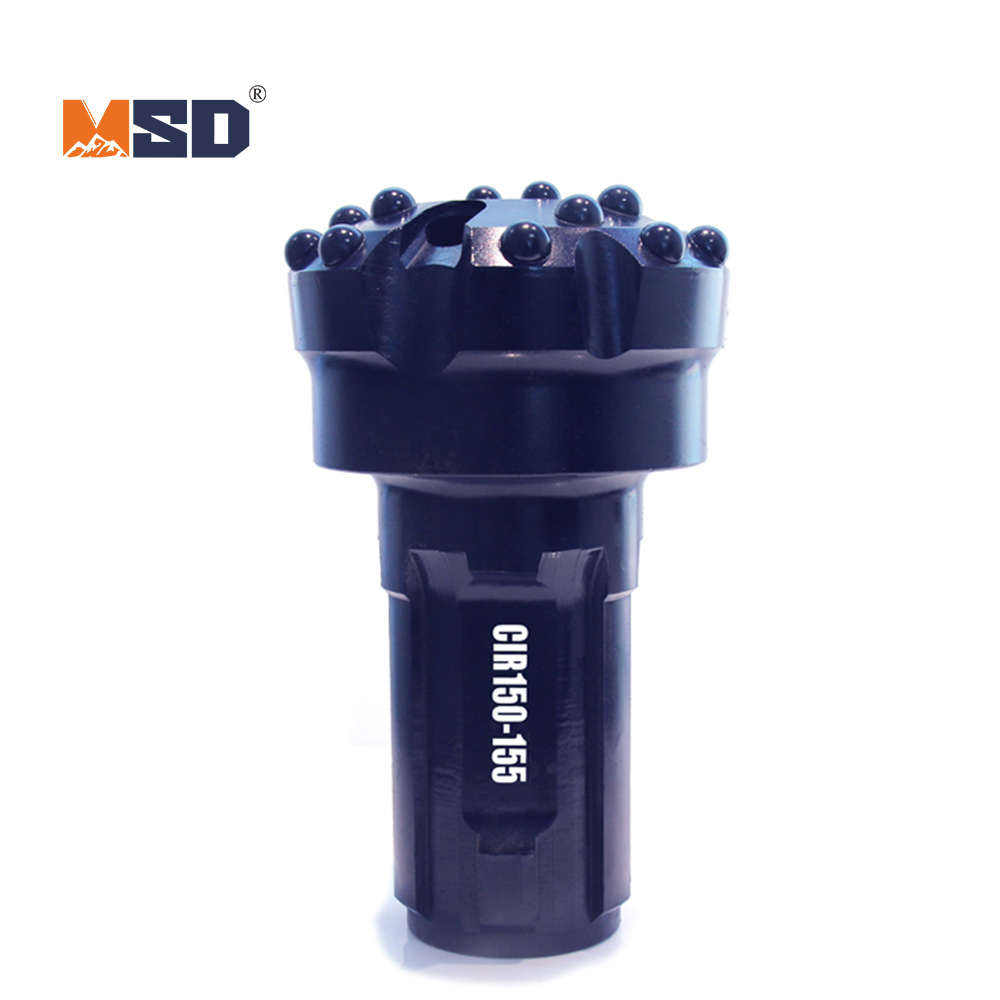

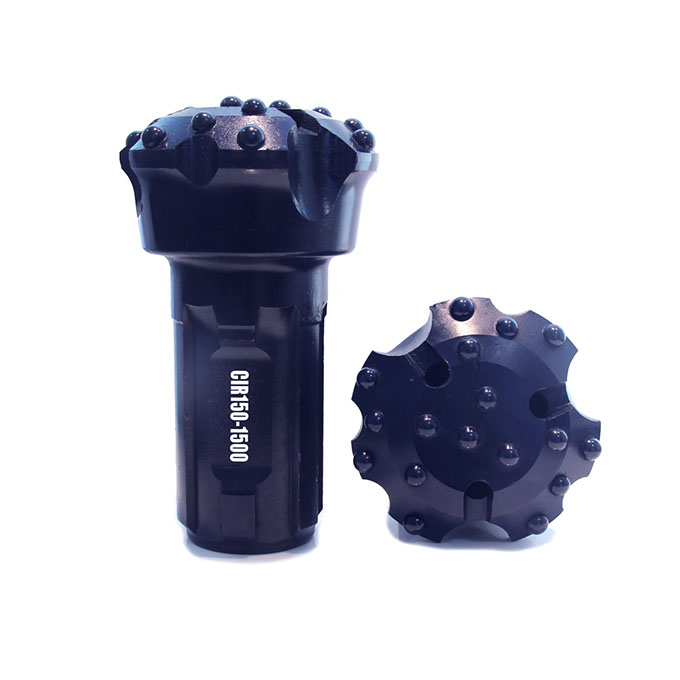

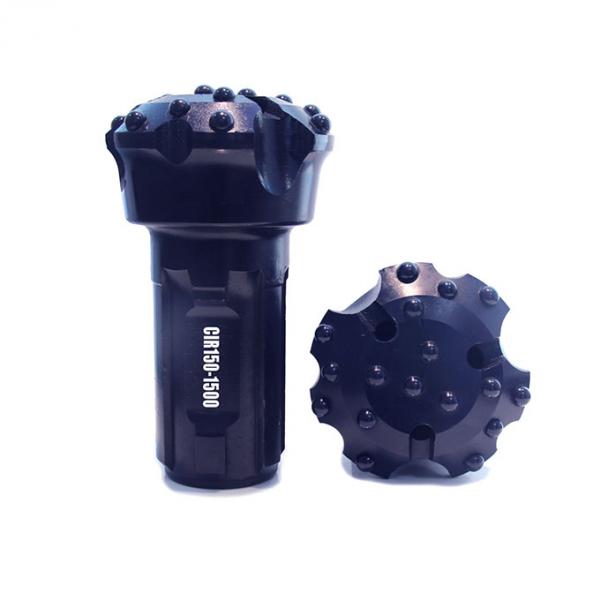

155mm CIR150 Shank Low Air Pressure DTH Bit
A robust and reliable choice for large piling. Our 155mm CIR150 DTH Bit delivers consistent performance for foundation drilling with low-pressure hammers. A powerful workhorse. Explore specs!
Model Number: MSD-CIR150-155
Diameter: 155mm
Shank Type: CIR150
Face Design: Flat Face
Carbide Shape: Spherical Buttons
Primary Application: Foundation Drilling, Piling

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Optimized for Low Air Pressure: Specifically engineered to deliver high performance when drilling large 155mm holes with economical, low-pressure air compressors.

  • Heavy-Duty CIR150 Shank: Features the powerful and robust CIR150 shank, ensuring compatibility with a range of reliable low-pressure DTH Hammers built for large diameters.

  • Durable Flat Face Design: The flat face provides excellent wear resistance and a long service life in the typical soft to medium-hard rock conditions found in construction and shallow drilling.

  • Tough Spherical Buttons: Equipped with large, durable spherical tungsten carbide buttons that offer great reliability and are less prone to breaking in varied ground conditions.

Recommended Applications

  • Foundation Piling and Construction: A primary application. A trusted workhorse for drilling large foundation piles and other boreholes on construction sites.

  • Large Diameter Water Wells: A powerful and economical choice for drilling high-capacity water wells.

  • Geotechnical and Environmental Drilling: A reliable tool for deeper site investigation projects requiring a larger borehole.

Technical Specifications

Diameter

Button

Button Angel

Air Holes

Weight (KG)

mm

inch

Gauge

Front

155

6 1/5

9x16

6x16+3x14

45

3

16.6

Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
