8" MISSION80 Shank DTH Hammer for Large-Diameter Drilling | MSD

8" MISSION80 Shank DTH Hammer for Large-Diameter Drilling | MSD

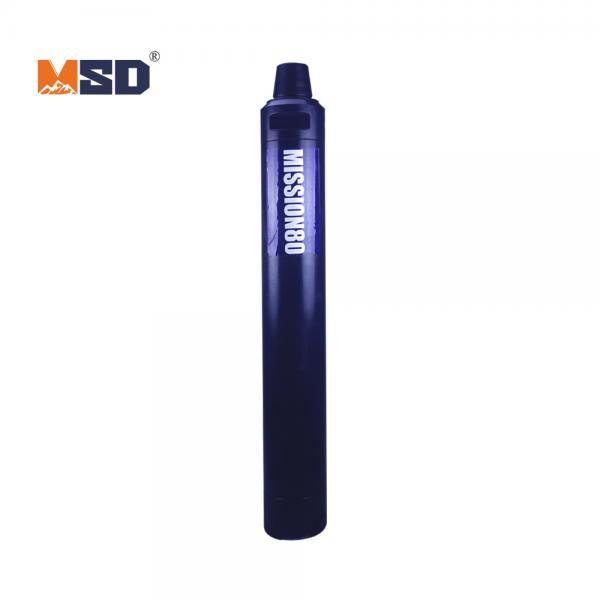

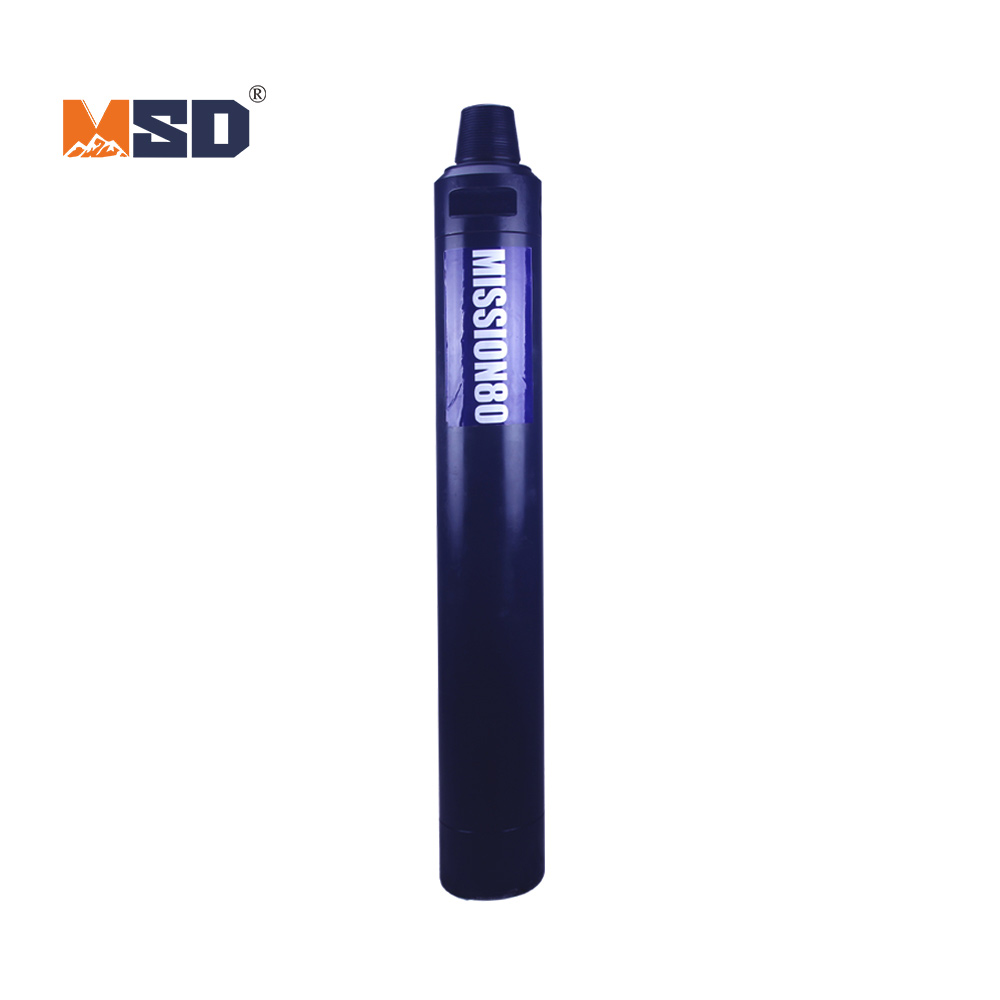

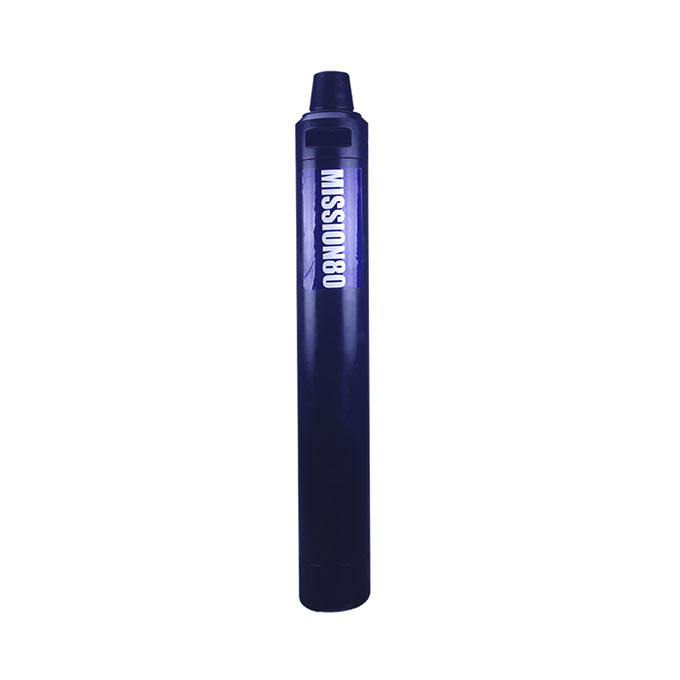

  • An 8-inch MISSION80 shank DTH hammer for large-diameter drilling
8" MISSION80 Shank DTH Hammer
Maximum power for your largest projects. Our 8" MISSION80 DTH Hammer is designed for deep hole and large-diameter production drilling in the toughest environments. Unleash ultimate performance. Explore specs!
Model Number: MSD-MISSION80
Size: 8 inch
Shank Type: MISSION80
Piston Design: Maximum-Power Valveless
Primary Application: Large-Diameter Mining, Deep Hole Drilling

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Ultimate Impact Power: The MISSION80 is engineered to deliver maximum impact energy, making it our most powerful hammer for breaking the hardest rock with exceptional speed.

  • Advanced Valveless System: A highly efficient valveless design that optimizes airflow to a massive piston, ensuring every bit of compressed air is converted into rock-shattering power.

  • Engineered for Extreme Conditions: Built with superior-grade materials and a robust structure to withstand the immense stresses of deep hole and large-diameter drilling.

  • Superior Productivity: By enabling larger and deeper holes to be drilled faster, the MISSION80 significantly boosts the productivity and profitability of major mining and construction projects.

Recommended Applications

  • Large-Scale Production Mining: The definitive choice for major open-pit mining operations where high-volume blasting is essential.

  • Deep Hole Drilling: The top performer for deep geothermal, water well, and exploration drilling projects.

  • Mega-Projects: The go-to hammer for the largest and most demanding infrastructure and civil engineering projects.

Technical Specifications


Overall Length

1338 mm

Outer Diameter

180 mm/ 185 mm

Weight

176 kg

Hole Diameter Range

195 mm - 254 mm

Connection Thread

API4 1/2'Reg

Operating Air Pressure

1.5-3.0Mpa

Recommended Rotation Speed

15-25r/min

Air Consumption

1.0Mpa:12m3/min

1.8Mpa:22m3/min

2.4Mpa:28m3/min


Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.


Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
