CIR150 Low Air Pressure DTH Hammer for Large Wells | MSD

CIR150 Low Air Pressure DTH Hammer for Large Wells | MSD

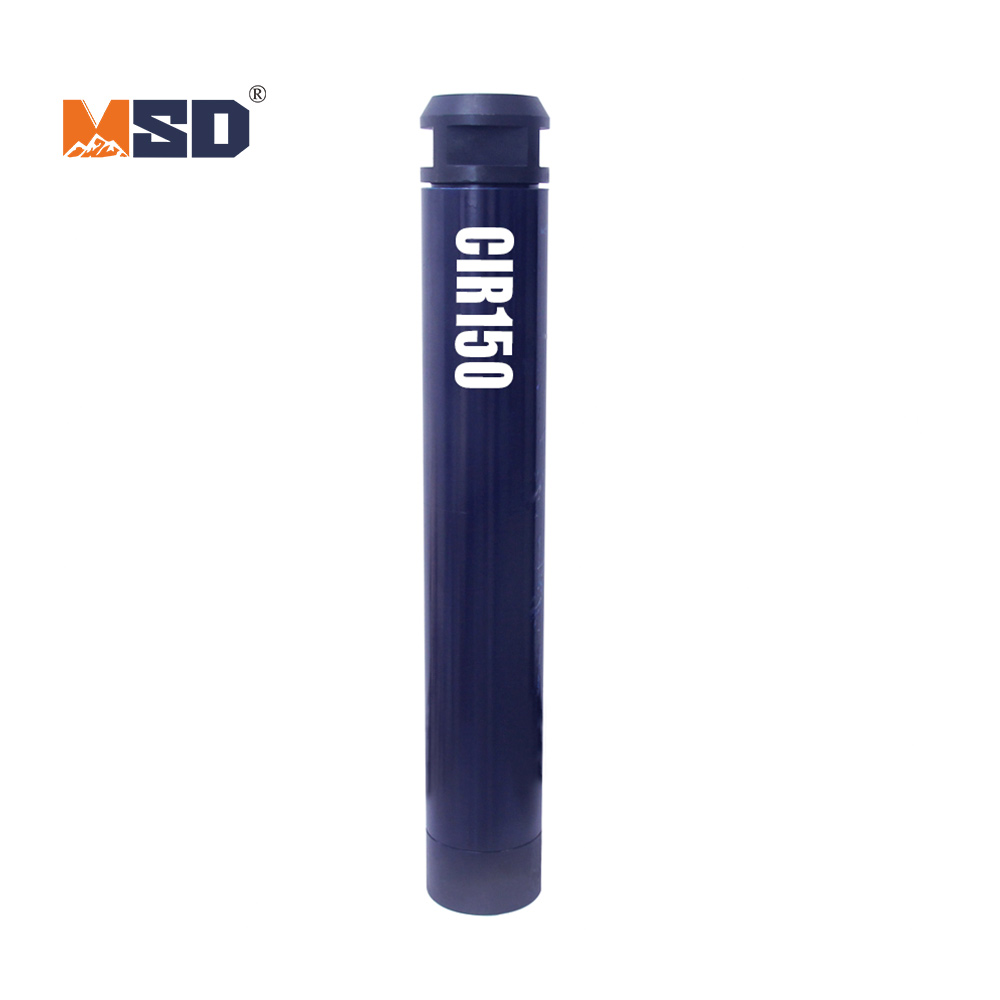

  • A CIR150 low air pressure DTH hammer for large-diameter wells
CIR150 Low Air Pressure DTH Hammer
Drill larger holes with low air pressure. Our CIR150 DTH Hammer is a classic, reliable solution for drilling large-diameter water wells and shallow construction holes. Get the job done simply and effectively. Explore specs!
Model Number: MSD-CIR150
Air Pressure: Low
Shank Type: CIR150
Piston Design: Classic Valved
Primary Application: Large Water Wells, Shallow Construction

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Optimized for Low Air Pressure: The CIR150 is engineered to perform efficiently with smaller, low-pressure air compressors, even when drilling larger diameter holes.

  • Simple, Robust Valved Design: A classic and proven valved piston design that is exceptionally reliable, durable, and very easy to maintain in the field.

  • Excellent Backflow Prevention: The valved design provides superior protection against cuttings and water backflow, ensuring reliable operation in wet and unstable ground.

  • Cost-Effective Large Hole Drilling: A highly economical solution for drilling larger diameter holes without the need for a large, high-pressure air compressor.

Recommended Applications

  • Large-Diameter Water Well Drilling: The primary application. It is the go-to hammer for drilling large residential, agricultural, and industrial water wells with smaller rigs.

  • Shallow Foundation and Construction Holes: A reliable and economical tool for drilling larger diameter holes for foundation work and other construction applications.

  • Geological Exploration: An effective tool for shallow-hole geological surveys and sampling projects requiring a larger diameter.

Technical Specifications

Overall Length

901 mm

Outer Diameter

101 mm

Weight

68.6 kg

Hole Diameter Range

155 mm - 178 mm

Connection Thread

API 2 3/8" IF BOX (F75*10)

Operating Air Pressure

0.5 - 1.0 Mpa

Recommended Rotation Speed

20 - 40 r/min

Air Consumption

18.0 m³/min


-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
