108mm Eccentric Casing System for Foundation Piling | MSD

The Challenge: Drilling in Difficult Ground

Drilling through loose overburden like sand, gravel, or backfill often leads to collapsing holes, stuck equipment, and significant project delays. In fractured or weathered rock, borehole integrity is constantly at risk, making it nearly impossible to achieve a clean, stable hole for piling or anchoring. These challenging ground conditions demand more than just a standard drill bit—they require a complete engineered system.

Our Solution: The Innovative Eccentric Mechanism

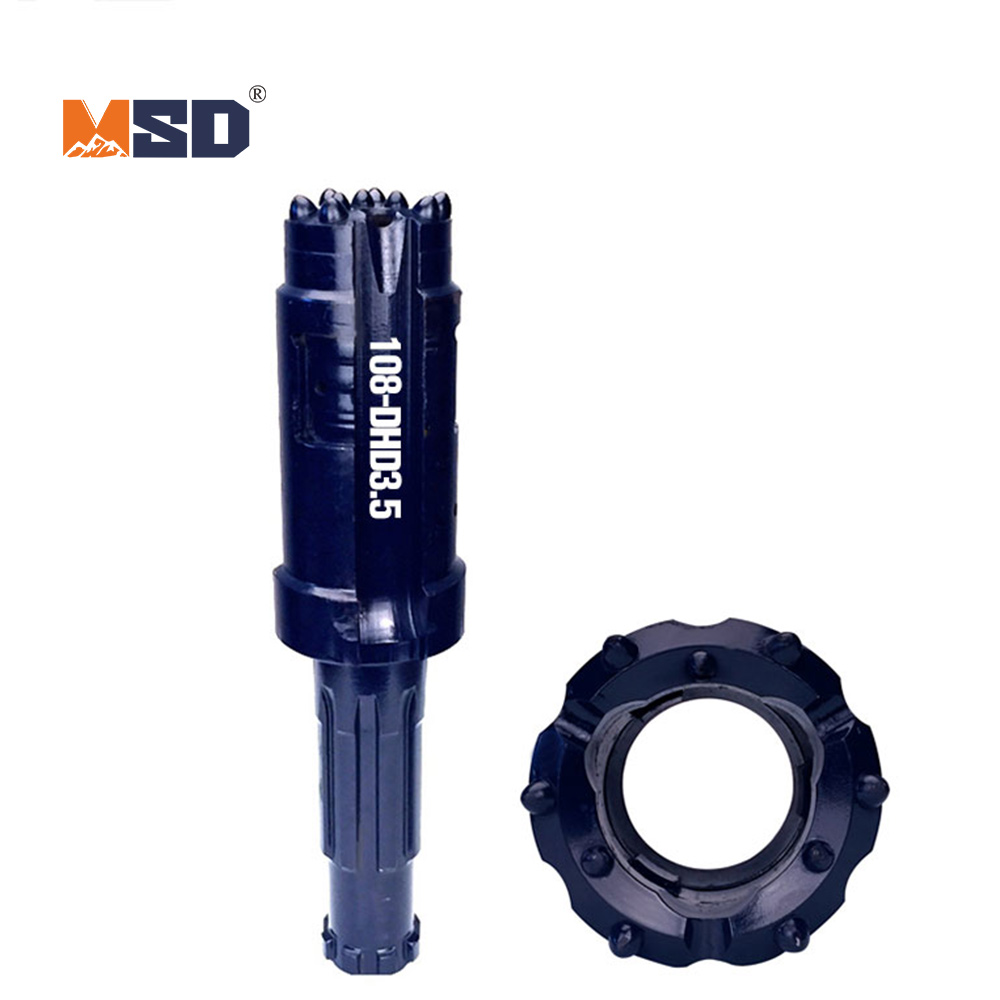

MSD's Eccentric Casing System provides a robust and efficient solution. This innovative system consists of a pilot bit and an integrated, swing-out reamer wing. During forward drilling, the reamer swings out to enlarge the borehole, allowing the 108mm casing to advance simultaneously with the drill string. This process drills and cases the hole in a single, fast operation. Once the desired depth is reached, a slight reverse rotation retracts the reamer, allowing the entire drill bit to be retrieved, leaving the casing in place.

Key Features and Advantages

• Fast Drilling and Casing: The aggressive design of the eccentric system allows for high penetration rates, making it one of the fastest methods for simultaneously drilling and casing a hole.

• Fully Retrievable and Reusable: The entire pilot bit and reamer assembly can be fully retrieved from the hole upon completion, ready for use on the next borehole. This significantly reduces tooling costs per project.

• Simple and Robust Design: With fewer moving parts, the eccentric system is exceptionally robust, reliable, and easy to use on-site, minimizing the risk of operational issues.

• Optimized for DHD3.5 Hammers: The pilot bit is designed with a DHD3.5 shank, ensuring perfect compatibility and efficient energy transfer from industry-standard 3.5-inch DTH Hammers.

Primary Applications

• Foundation Piling: The primary application. Its speed and reliability make it the ideal choice for installing 108mm foundation piles through any type of overburden, from soft soil to boulder-filled formations.

• Ground Anchoring and Slope Stabilization: A highly effective system for drilling deep, secure anchor holes in fractured rock for retaining walls, dams, and slope stabilization projects.

• Geothermal Well Drilling: A cost-effective method for drilling and casing multiple geothermal loops quickly, especially in residential or commercial projects.

Technical Specifications

Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.
