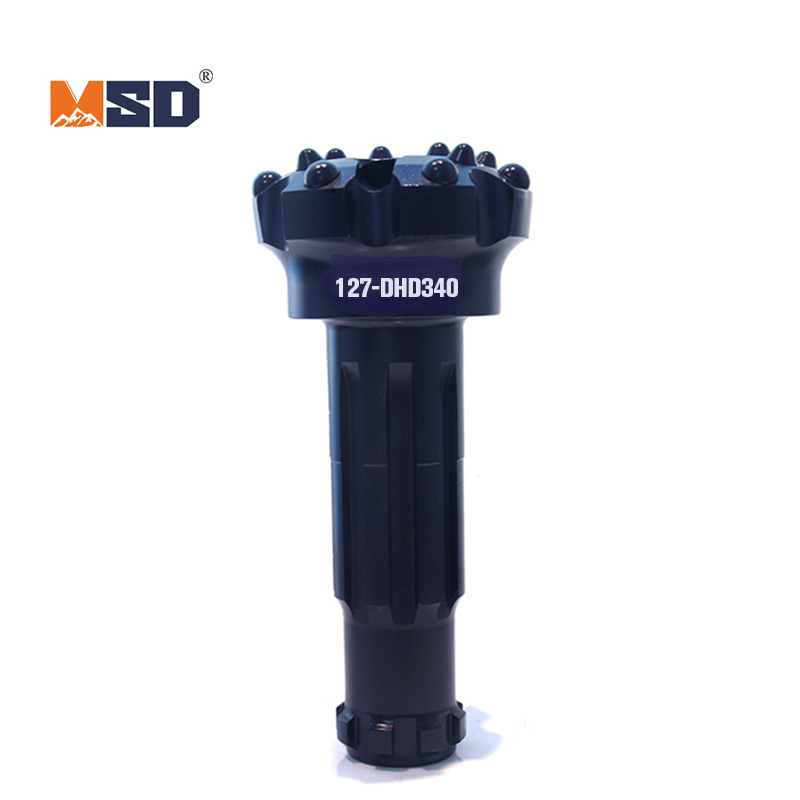

127mm DHD340 Shank DTH Bit (5 Inch) for Production Drilling | MSD

127mm DHD340 Shank DTH Bit (5 Inch) for Production Drilling | MSD
  • A 127mm (5-inch) DTH bit with a DHD340 shank for production drilling
127mm (5") DHD340 Shank High Air Pressure DTH Bit
The industry workhorse for 5-inch holes. Our 127mm DTH Bit with a DHD340 shank is designed for high productivity in production drilling. A reliable and cost-effective choice. Boost your output. Explore specs!
Model Number: MSD-DHD340-127
Diameter: 127mm (5")
Shank Type: DHD340
Face Design: Convex Face
Carbide Shape: Spherical Buttons
Primary Application: Production Drilling, Mining, Quarrying

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Industry-Standard DHD340 Shank: Features the globally recognized DHD340 shank, ensuring perfect compatibility with a vast range of 4" DTH Hammers, including our high-performance MSD DHD340A model.

  • High-Productivity 5" Diameter: The 127mm (5") diameter is a popular industry standard for production drilling, offering an optimal balance of a large blast hole size and a high rate of penetration.

  • Versatile Convex Face: The convex face design provides a fast drilling speed and good durability, making it a reliable choice for a wide variety of rock types in mining and quarrying.

  • Robust Spherical Buttons: Equipped with tough, spherical tungsten carbide buttons that are designed for a long service life and consistent performance in demanding drilling shifts.

Recommended Applications

  • Production Drilling in Mining and Quarrying: A leading choice for creating blast holes efficiently in medium-sized open-pit mines and quarries.

  • Large-Scale Construction: A powerful tool for demanding civil engineering projects, including drilling for foundations, pipelines, and large-scale excavation.

  • Deep Water Well Drilling: Its power and reliability make it an excellent choice for drilling deep and large-diameter water wells.

Technical Specifications

Diameter

Button

Button Angel

Air Holes

Weight (KG)

mm

inch

Gauge

Front

127

5

8x16

7x14

38

2

9.3

Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
