89mm ST58 Threaded Bit for High-Efficiency Production Drilling | MSD

89mm ST58 Threaded Bit for High-Efficiency Production Drilling | MSD
  • An 89mm ST58 threaded bit with a modern thread for high-efficiency drilling

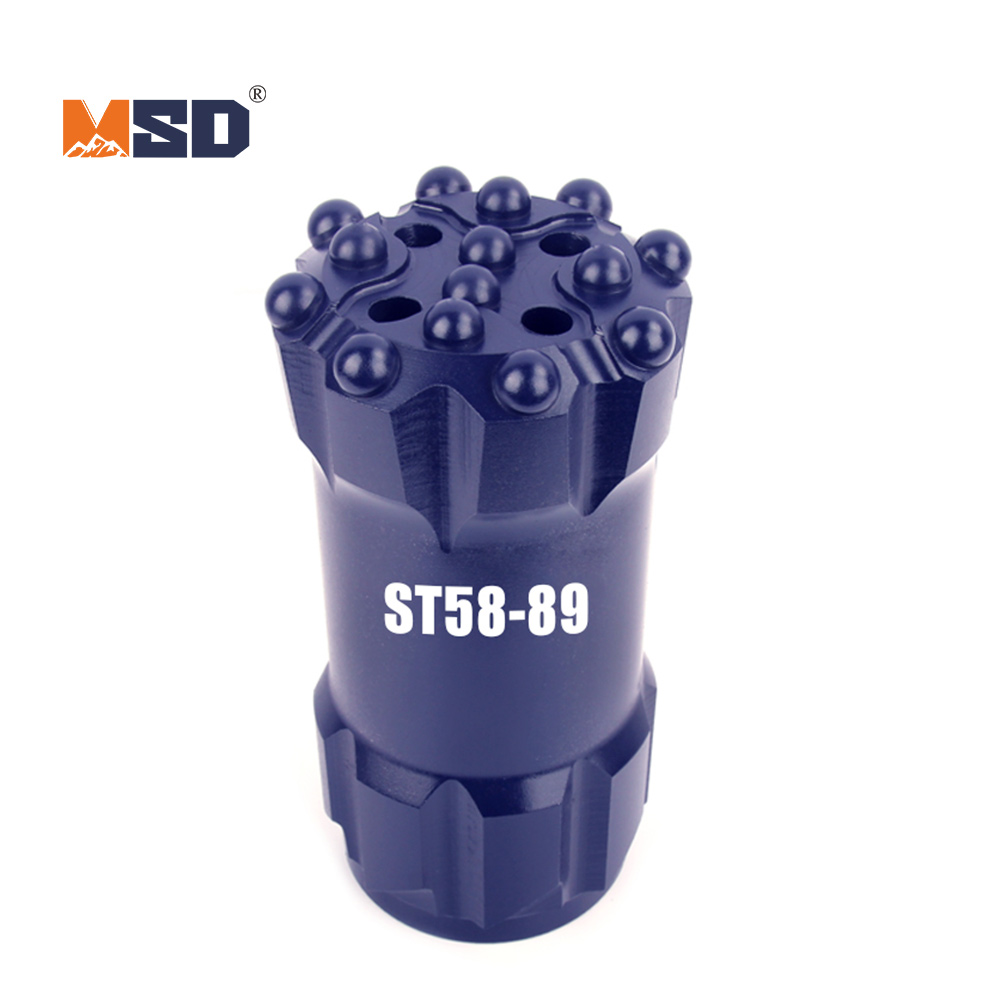

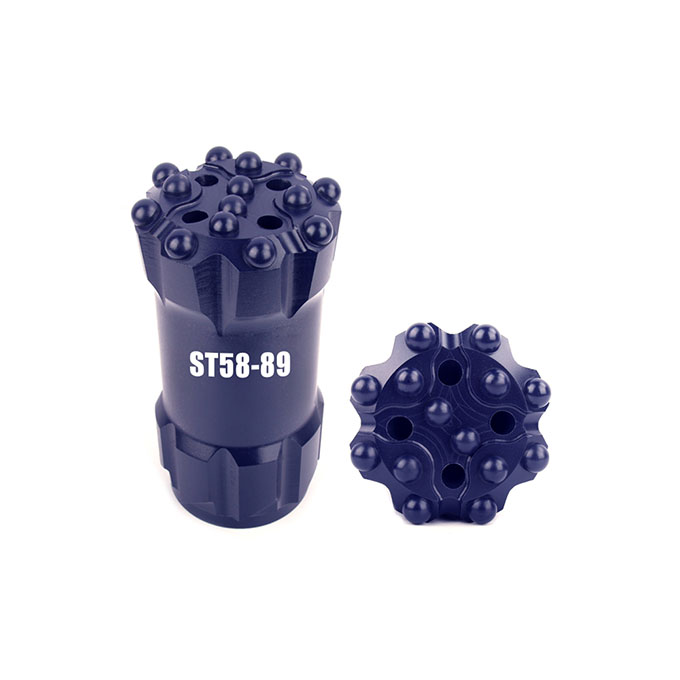

89mm ST58 Threaded Bit
Experience the next level of drilling efficiency. Our 89mm ST58 Threaded Bit features a modern thread design for superior performance and longer life. Reduce costs and drill faster. Explore specs for your powerful drill rig!
Model Number: MSD-ST58-89
Diameter: 89mm (3 ½")
Thread Interface: ST58 (Rope Thread)
Primary Application: High-Efficiency Benching, Modern Hydraulic Rigs

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Advanced ST58 Thread Profile: The ST58 thread offers a significant advantage over conventional T-threads, providing a more rigid connection, better energy transmission, and superior resistance to jamming, especially in deep hole applications.

  • Extended Thread Life: The modern rope thread design of the ST58 interface results in less wear and tear on both the bit and the drill rods, leading to a longer overall service life for your entire drill string and reducing consumable costs.

  • Optimized for Modern Rigs: Engineered to take full advantage of the power and advanced features of modern hydraulic drifters, the ST58 system allows for higher penetration rates and greater drilling precision.

  • High-Productivity Design: Combines the efficient 89mm drilling diameter with the superior ST58 thread to create a tool that delivers unmatched performance in demanding production benching environments.

Recommended Applications

  • High-Efficiency Bench Drilling: The primary application. Ideal for quarries and mines equipped with modern, powerful drill rigs, seeking to minimize drilling time and maximize operational uptime.

  • Deep Hole and Production Drilling: The ST58 thread's stability makes this bit an exceptional choice for deep production holes where straightness and easy uncoupling are critical.

  • Demanding Ground Conditions: The robust thread design provides extra security and performance when drilling in complex or fractured rock formations.

Technical Specifications

Thread

Diameter

Button

Button

 Angel

Air holes

 Gauge

 Front

ST58

89

8×φ12

6×φ12

35

4

ST58

89

8×φ14

6×φ12

35

4


Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
