32mm 7° Tapered Button Bit (6-Button) for General Mining | MSD

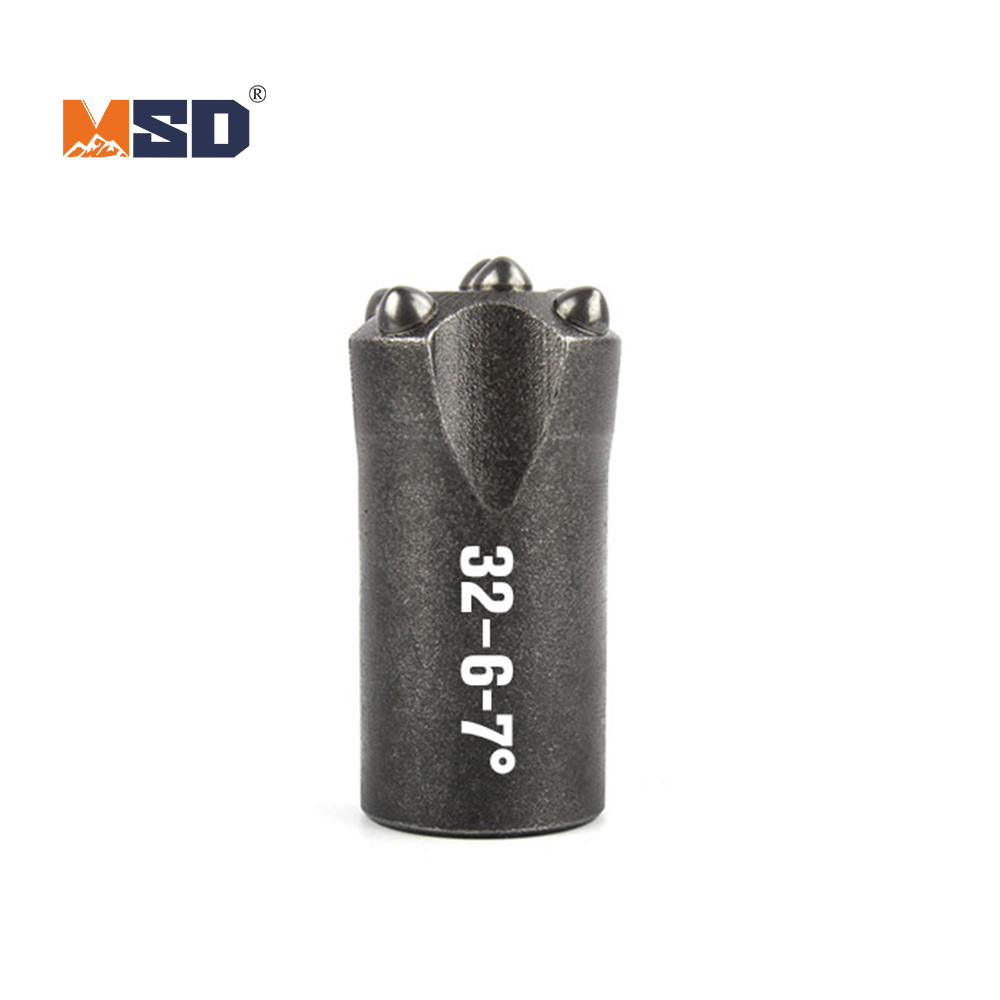

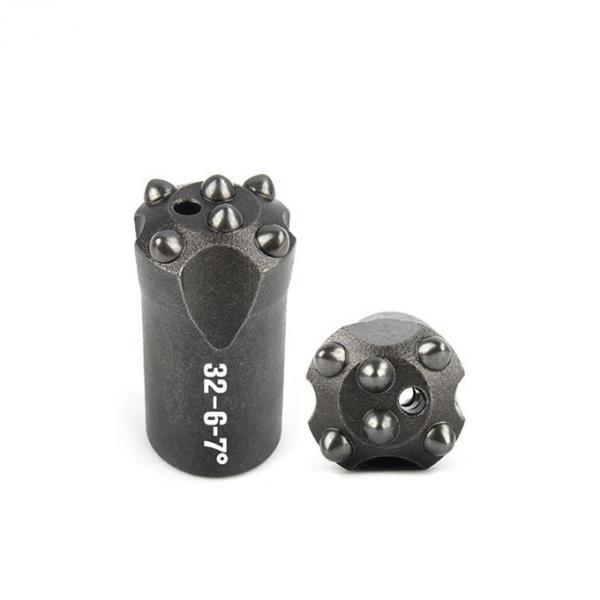

32mm 7° Tapered Button Bit (6-Button)
Seeking a balance of speed and life? Our 32mm 6-Button Tapered Bit is the answer. Perfect for hand-held drills, it offers enhanced durability and smooth performance. Get reliable results. Explore specs!
Model Number:
MSD-32(6)-7°
Diameter:
32mm
Taper Angle:
7°
Button Count:
6
Primary Application:
General Mining, Construction
Email This Page Contact Now
Features & Benefits
High-Precision Drilling: The 32mm diameter offers exceptional control with light, hand-held rock drills for accurate hole placement.
Optimal 7° Taper Connection: A 7° taper ensures a stable connection for maximum energy transfer and reduced jamming risk.
Balanced 6-Button Layout: Provides a smoother drilling experience and enhanced durability by distributing the workload across more carbide buttons.
Efficient Cuttings Evacuation: A classic flushing design clears rock chips efficiently to maintain a high rate of penetration.
Recommended Applications
General Underground Mining: A versatile workhorse for various tasks, including rock bolting and face drilling in medium-hard rock.
Construction & Renovation: Highly effective for controlled demolition, anchoring, and renovation work in civil engineering.
Technical Specifications
Diameter (mm) | Button | Button Angel | Flushing hole | Weight (KG) |
| Gauge | Front | Edge | Middle |
| 32 | 4x7 | 2x7 | 35° | 1 | 1 | 0.24 |
Standard & Custom-Engineered Solutions
Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.
We excel at solving unique geological challenges and developing tools for non-standard requirements.
Contact us today to find the perfect standard bit or to begin engineering your unique tool for success！
