38mm 11° Tapered Button Bit (7-Button) for Productive Underground Drilling | MSD

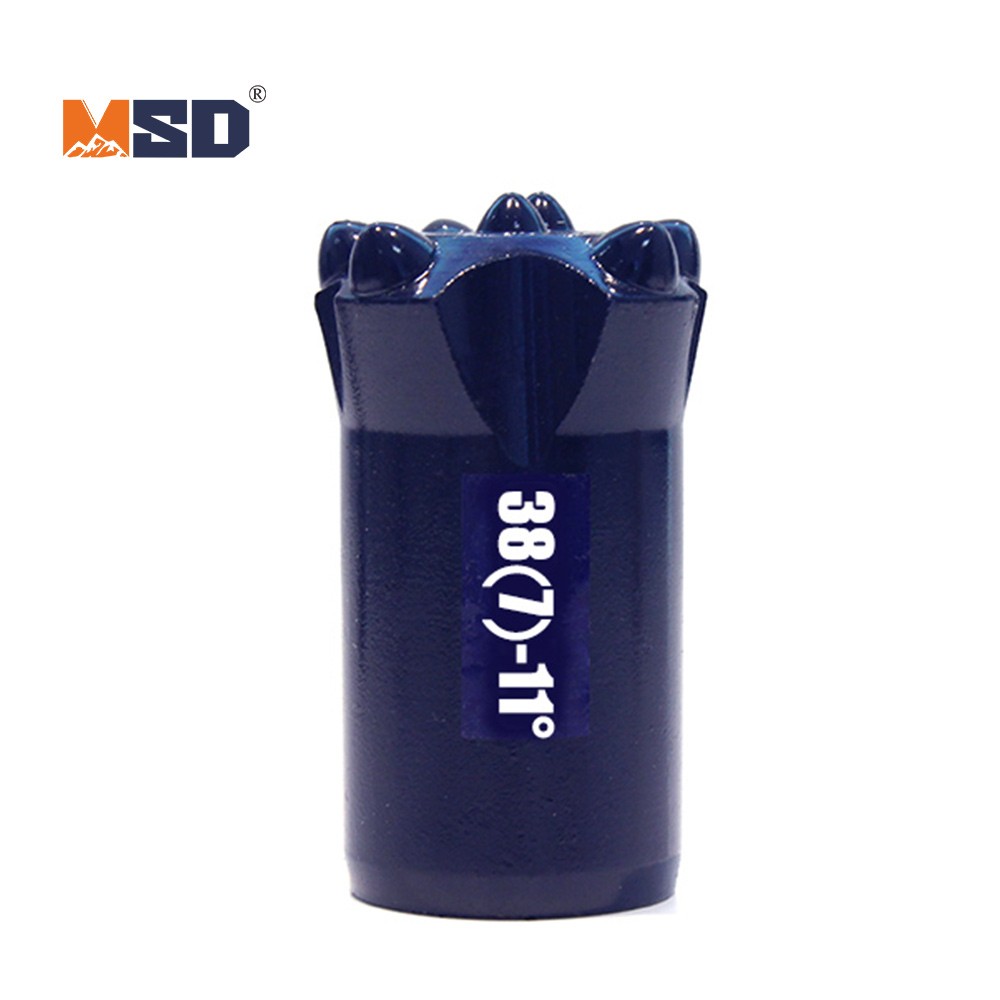

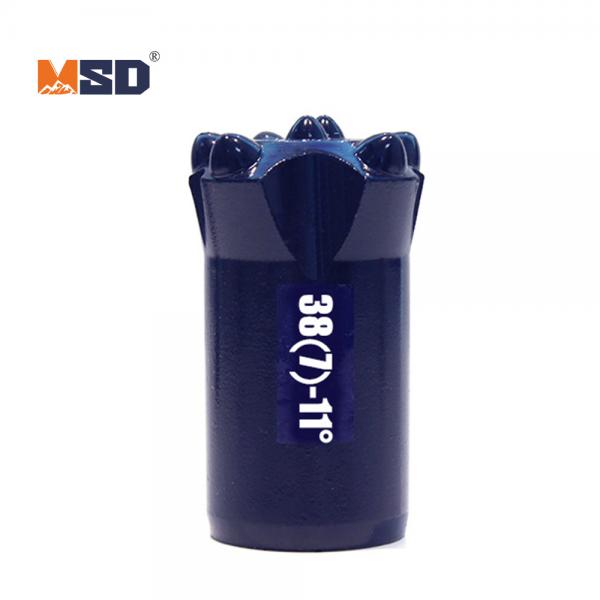

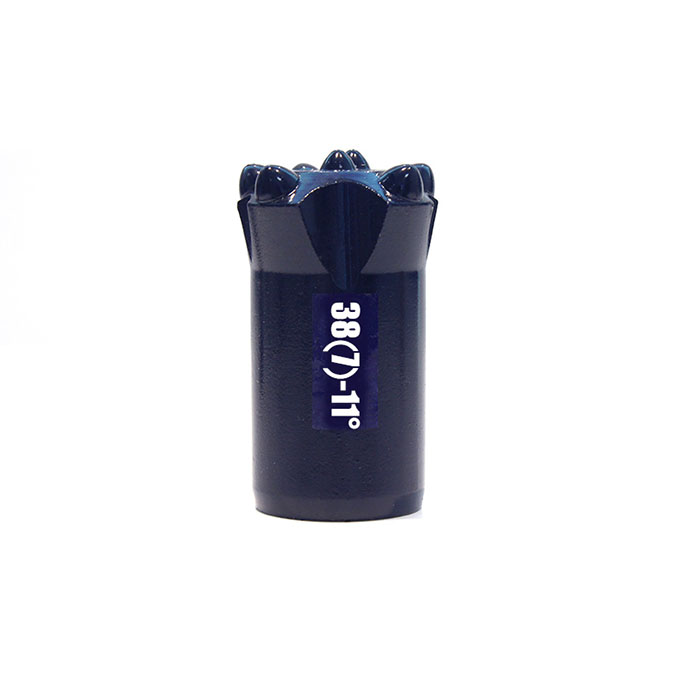

38mm 11° Tapered Button Bit (7-Button)
A powerful combination of speed and durability. Our 38mm 11° Tapered Bit ensures fast retraction and a long life, making it a workhorse for productive drilling. Explore specs now!
Model Number:
MSD-38(7)-11°
Diameter:
38mm
Taper Angle:
11°
Button Count:
7
Primary Application:
Productive Drilling, General Mining
Email This Page Contact Now
Features & Benefits
Robust 38mm Diameter: A powerful and stable diameter suitable for a variety of demanding drilling tasks.
High-Efficiency 11° Taper: The 11° taper provides easy extraction, significantly improving work efficiency by shortening drill cycles.
Durable 7-Button Layout: Offers excellent wear resistance, ensuring a long and reliable service life in medium-hard rock conditions.
Signature MSD Coating: Finished with our distinctive Imperial Blue coating for enhanced corrosion resistance and a mark of genuine MSD quality.
Recommended Applications
Productive Underground Mining: An excellent workhorse for development drilling and bolting where both speed and durability are required.
General Quarrying: A fast and reliable tool for a wide range of drilling applications in quarries.
Technical Specifications
Diameter (mm) | Button | Button Angel | Flushing hole | Weight (KG) |
| Gauge | Front | Edge | Middle |
| 38 | 5x8 | 2x7 | 35° | 2 | 1 | 0.34 |
| 38 | 5x9 | 2x7 | 35° | 2 | 1 | 0.34 |
Standard & Custom-Engineered Solutions
Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.
We excel at solving unique geological challenges and developing tools for non-standard requirements.
Contact us today to find the perfect standard bit or to begin engineering your unique tool for success！
