175mm CIR110 Low Air Pressure DTH Bit for Special Projects | MSD

175mm CIR110 Low Air Pressure DTH Bit for Special Projects | MSD
  • A 175mm CIR110 shank low air pressure DTH bit for special projects

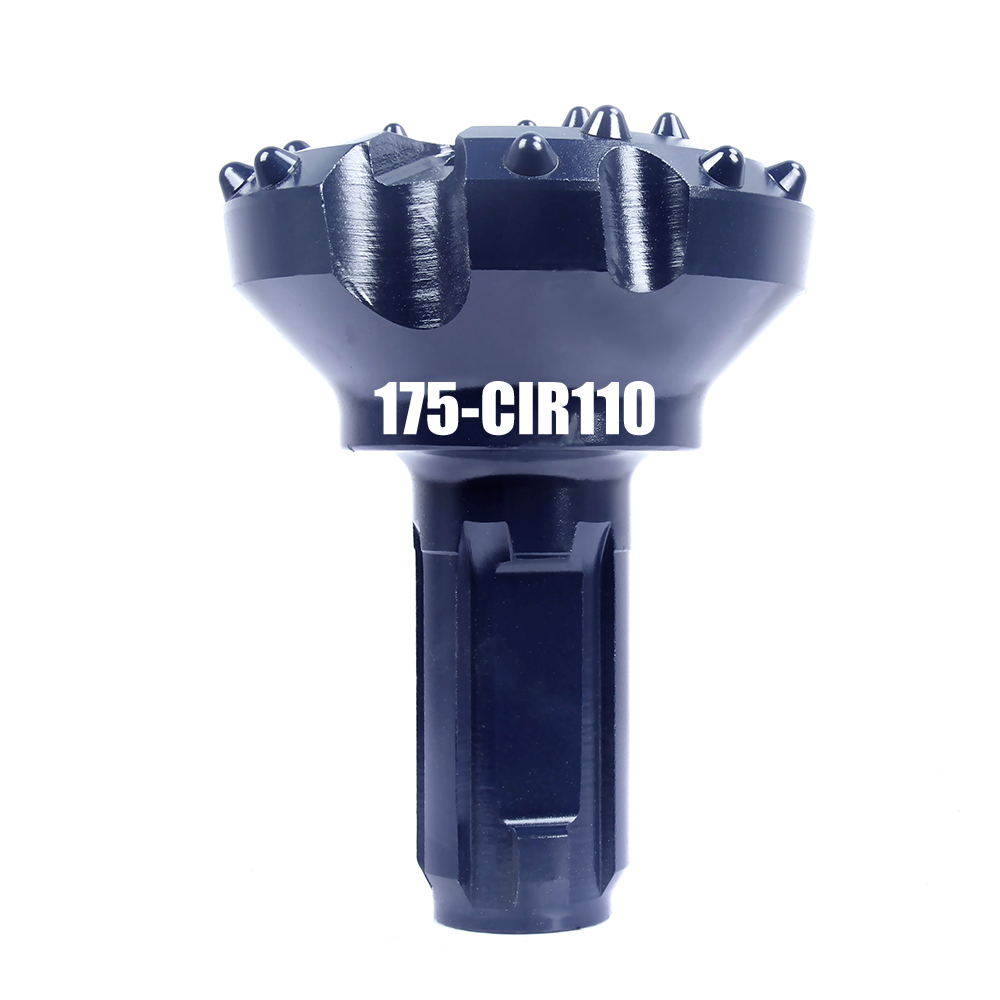

175mm CIR110 Shank Low Air Pressure DTH Bit
A specialized tool for large, shallow holes. Our 175mm CIR110 DTH Bit is the solution for unique construction and piling projects using low-pressure rigs. Get the job done. Explore specs!
Model Number: MSD-CIR110-175
Diameter: 175mm
Shank Type: CIR110
Face Design: Concave Face
Carbide Shape: Spherical Buttons
Primary Application: Special Projects, Large Construction Piles

Email This Page  Contact Now
  • Product Description

Features & Benefits

  • Optimized for Low Air Pressure: Engineered to efficiently drill large 175mm holes using standard low-pressure compressors, offering a highly cost-effective drilling solution.

  • Robust CIR110 Shank: Features the reliable CIR110 shank, ensuring compatibility with a range of powerful low-pressure DTH Hammers designed for larger diameters.

  • Excellent Hole Straightness: The concave face design provides superior directional control, critical for creating straight, high-quality boreholes for specialized piling.

  • Durable Spherical Buttons: Equipped with tough, spherical tungsten carbide buttons that provide a long service life and reliable performance.

Recommended Applications

  • Specialized Construction Piling: The primary application. An excellent choice for unique piling projects requiring a 175mm diameter for specific structural needs.

  • Large Utility and Service Holes: A perfect tool for creating large openings for utility conduits, drainage, or other specific site requirements.

  • Shallow Shafts: A cost-effective solution for creating shallow shafts for ventilation or access in certain mining or construction scenarios.

Technical Specifications

Diameter

Button

Button Angel

Air Holes

Weight (KG)

mm

inch

Gauge

Front

175

7

9x14

3x14+6x12

45

3

11.2


Standard & Custom-Engineered Solutions

Whether your project requires a proven tool from our standard catalog or a completely custom-engineered solution, our team of drilling experts is ready to assist.

We excel at solving unique geological challenges and developing tools for non-standard requirements.

Contact us today to find the perfect standard bit or to begin engineering your unique tool for success!
