MSD casing shoes include threaded and welded configurations for 12 matching casing tube OD sizes from 108 to 325 mm, with listed dimensions and weights.
MSD supplies casing shoes as casing-end components for drilling casing assemblies. The confirmed product range contains threaded and welded configurations for 12 matching casing tube OD sizes from 108 to 325 mm.
Both tabs list the matching casing tube OD, casing-shoe outer diameter, minimum inner diameter, matching tube wall thickness, and weight. The threaded series also lists Square Tooth or Arc Thread connections and left-hand rotation, so the complete configuration and connection method should be checked before ordering.
| Schema | Matching Casing Tube OD (mm) | Outer Diameter (mm) | Minimum Inner Diameter (mm) | Matching Casing Tube Wall Thickness (mm) | Thread Type | Rotation | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 108 | 108 | 86 | 7 | Square Tooth | Left | 2.4 | |
| 114 | 114 | 92 | 6.5 | Square Tooth | Left | 3 | |
| 127 | 127 | 100 | 9.5 | Arc Thread | Left | 3.3 | |
| 146 | 146 | 117 | 10 | Arc Thread | Left | 4.4 | |
| 168 | 168 | 138 | 10 | Arc Thread | Left | 6.1 | |
| 178 | 178 | 147 | 10 | Arc Thread | Left | 7.5 | |
| 183 | 183 | 153 | 10 | Arc Thread | Left | 8.6 | |
| 194 | 194 | 162 | 10 | Arc Thread | Left | 8.8 | |
| 219 | 219 | 187 | 10 | Arc Thread | Left | 12.8 | |
| 245 | 245 | 210 | 10 | Arc Thread | Left | 13.5 | |
| 273 | 273 | 241 | 10 | Arc Thread | Left | 15 | |
| 325 | 325 | 282 | 12.5 | Arc Thread | Left | 18 |
Other wall thicknesses can be customized.
0
APPLICATIONS
CASE STUDIES
MSD Concentric Casing System achieved 100% hole completion across 36 water wells in South
Read More
MSD T51-115mm thread button bit achieved 25% faster drilling and 30% longer life at Austra
Read More
MSD DTH hammer + drill pipe system achieved 24% faster drilling and 26% lower cost at Braz
Read More
MSD QL60-178 DTH bit achieved 340m per bit and 35% lower drilling cost in Russian hard roc
Read More
MSD custom 500mm DTH bit achieved zero structural failures and 40% efficiency gain in Taiw
Read MoreCasing shoes are casing-end components used with casing tubes in drilling casing assemblies. This page covers the shoe product itself: its threaded or welded configuration, matching tube size, listed dimensions, connection details where applicable, and weight.
A casing shoe is not a complete casing system and does not determine whether the assembly uses an eccentric or concentric drilling mechanism. The shoe must instead be matched to the selected casing tube and the complete casing assembly.
The current MSD range is divided into Threaded Casing Shoes and Welded Casing Shoes. Each tab contains 12 confirmed configurations for matching casing tube OD sizes of 108, 114, 127, 146, 168, 178, 183, 194, 219, 245, 273, and 325 mm.

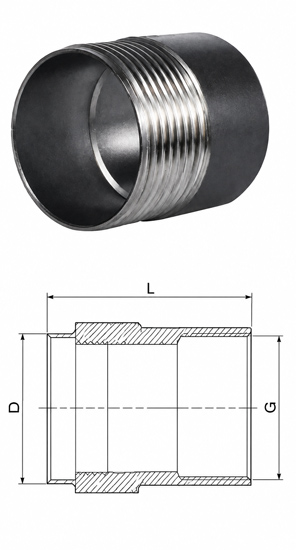

Threaded configurations list the thread type and rotation in addition to the dimensional fields. The 108 and 114 mm threaded shoes use Square Tooth connections; the listed 127–325 mm threaded shoes use Arc Thread connections. All listed threaded configurations use left-hand rotation. The welded tab does not assign thread or rotation values.
For both product groups, the table gives the matching casing tube OD, casing-shoe outer diameter, minimum inner diameter, matching casing tube wall thickness, and weight. Values must be read from one complete row because a matching tube OD alone does not confirm every required dimension.

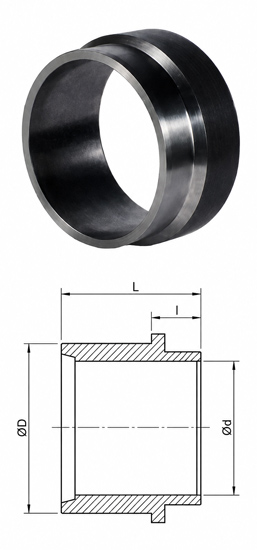

The threaded and welded configurations can also differ at the same matching tube OD. For example, the listed 114 mm threaded shoe has a 92 mm minimum inner diameter and weighs 3 kg, while the listed 114 mm welded shoe has a 91 mm minimum inner diameter and weighs 2.5 kg. The required connection method must therefore be confirmed before comparing dimensions or weight.
The casing tube forms the tubular part of the assembly, while the casing shoe is the separate component fitted at the casing end. Matching requires more than choosing the same nominal size: the casing tube OD, wall thickness, shoe dimensions, and threaded or welded configuration must all be coordinated.
Eccentric and concentric product pages define the casing-system mechanism and its system-specific configuration. This page remains focused on casing-shoe specifications. When a shoe is required for an existing system, the complete assembly information should be supplied for checking.
Begin by confirming whether a threaded or welded casing shoe is required. Then identify the matching casing tube OD and wall thickness and compare the listed outer diameter, minimum inner diameter, and weight. For a threaded configuration, also confirm the thread type and left-hand rotation shown in the table.
For a quotation, provide the required shoe type, matching casing tube OD and wall thickness, connection method, quantity, and complete casing-system or assembly information. For replacement or compatibility checks, also provide current product markings, measured dimensions, clear photos, or technical drawings.
MSD is a China-based rock drilling tools manufacturer supplying casing shoes, casing tubes, casing systems, and related drilling components. MSD has 23 years of rock drilling tools manufacturing experience, exports to 40+ countries, and operates under ISO 9001 certified quality management.
For a casing-shoe enquiry, the MSD team reviews the required shoe type, matching casing tube dimensions, connection details, and complete assembly information before confirming a listed configuration.
Technical content reviewed by MSD Engineering Team. | MSD — 23 years of rock drilling tools manufacturing expertise | ISO 9001 Certified | Exporting to 40+ countries
