Slide Block Casing System

What Is a Slide Block Casing System?

A slide block casing system is a retrievable casing-advancement structure that uses discrete blocks moving in guide slots. During drilling, the blocks move outward to create the reaming diameter around the center bit while the casing advances.

This page covers the slide-block product entity. It is not the standard concentric casing system with a fixed ring bit, and it is not the concentric casing system with movable wings. Using the structural name consistently keeps selection focused on the required block mechanism.

How the Slide Block Structure Works

The center bit drills the central section, while the separate slide blocks travel outward along their guide slots to enlarge the hole to the listed maximum reaming OD. The slide-block assembly is designed to be retrieved after the relevant drilling stage.

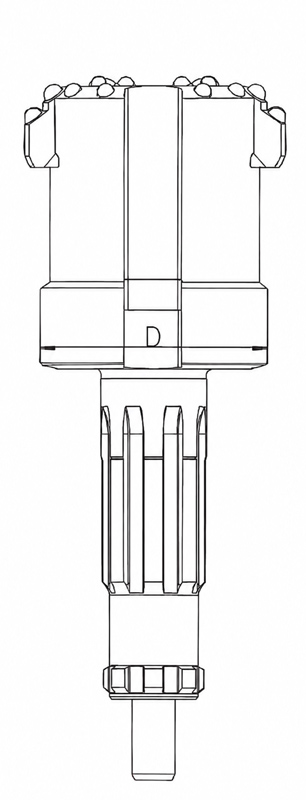

The confirmed material identifies the outward sliding-block movement and retrievable structure. It does not confirm that eccentric bit movement actuates block retraction, so that specific operating sequence should be checked against the supplied drawing or technical confirmation for the selected model.

Confirmed Slide Block Configurations

The current table lists 13 configurations from 146 Slide Block Casing to 610 Slide Block Casing. The corresponding casing ODs run from 146 to 610 mm, maximum center-bit ODs from 123 to 582 mm, casing-shoe IDs from 115 to 556 mm, and maximum reaming ODs from 156 to 640 mm.

Listed hammer types range from 4 inch to 18 inch, with several rows showing an allowable hammer-size range. These values are row-specific; the endpoints do not mean that every intermediate casing size or an unlisted hammer combination is available.

Applications and Selection Considerations

Slide block casing systems may be evaluated for grouting, water-well, foundation, and other overburden drilling work where a casing-advancement method with a retrievable block assembly is required. Suitability must be checked against the actual ground profile, hole direction, required casing dimensions, drilling depth, and equipment.

Select one complete row by matching casing OD, maximum center-bit OD, casing-shoe ID, maximum reaming OD, and hammer type. A casing OD or hammer size alone is not sufficient because dimensions and listed power-tool requirements change by configuration. The current table also states that a different casing wall thickness requires a special design.

Information to Confirm Before Ordering

For a quotation, provide the required casing OD and wall thickness, casing-shoe ID, target reaming or finished-hole diameter, exact hammer model and size, drilling-rig details, casing length and connection, ground description, required cased depth, hole direction, and quantity.

For replacement orders, also provide the current slide block casing model, product markings, measured dimensions, and clear photos or drawings of the center bit, blocks, guide structure, and casing shoe. MSD will compare this information with the confirmed configuration before selection.

Why Choose MSD

MSD is a China-based rock drilling tools manufacturer supplying casing systems and related drilling tools. MSD has 23 years of rock drilling tools manufacturing experience, exports to 40+ countries, and operates under ISO 9001 certified quality management.

For a slide block casing system enquiry, the MSD team reviews the required casing dimensions, reaming diameter, casing shoe, hammer, equipment, and ground information before confirming a listed or special-design configuration.
