Roadheader Picks

Roadheader Picks for Mechanical Excavation

MSD roadheader picks are carbide cutting tools designed for roadheader cutting heads used in tunnelling and underground roadway excavation.

These round-shank picks operate as part of a cutting system that includes the carbide-tipped pick, retaining arrangement, holder, and cutting head. They are mechanical excavation components rather than general-purpose mining tools.

Selection depends on the material being cut, excavation conditions, existing pick dimensions, holder arrangement, cutting-head information, and observed wear. The product name alone does not confirm the correct replacement.

Roadheader Cutting Head and Excavation Review

Tunnelling and underground roadway excavation conditions can vary with material strength, abrasiveness, impact, water, discontinuities, and the cutting arrangement. These factors should be described before an available pick is selected.

Provide the roadheader application, cutting-head information, pick position, excavation material, working conditions, and the wear or damage observed on the current tooling. This supports application review without assuming compatibility with a particular machine or brand.

When conditions vary along the excavation, include representative information for harder, more abrasive, or fractured sections as well as normal conditions. Actual selection depends on the complete cutting system and operating environment.

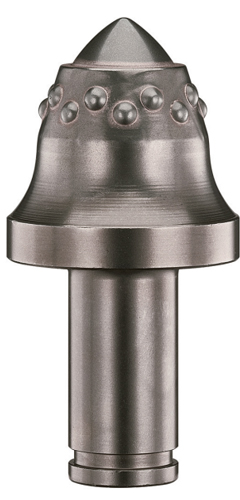

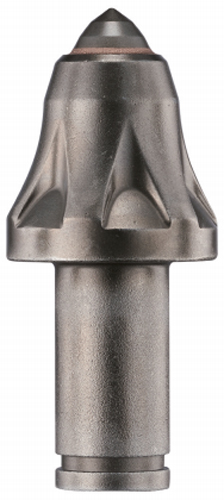

38 mm Shank Confirmation

The current MSD roadheader picks range is organized as a 38 mm shank group. Shank diameter is a primary matching dimension, but it does not establish holder compatibility by itself.

Compare the published model, head diameter, shank diameter, carbide tip diameter, head length, shank length, and overall length with the existing pick or confirmed cutting-system requirement.

If the existing pick has no readable model marking, provide measured dimensions, clear photographs from several angles, and a drawing or physical sample where available. Do not substitute another shank size or complete a missing value by assumption.

Carbide Tip Geometry and Excavation Conditions

Carbide tip diameter, pick-head geometry, and overall pick geometry should be reviewed against the excavation material, abrasiveness, impact conditions, and cutting arrangement.

Photographs of used picks can help identify the observed wear pattern, tip damage, body wear, poor rotation, or uneven contact. These observations support selection but do not replace confirmation of the shank, holder interface, cutting head, and complete dimensions.

Material details and performance expectations should be confirmed for the specific requirement rather than inferred from a competitor product or a similar-looking pick.

Holder, Cutting Head, and Replacement Matching

The correct pick must match the holder, retaining arrangement, and cutting-head configuration. Confirm the 38 mm shank requirement together with shank length, head dimensions, installation clearance, mounting position, and holder condition.

Before ordering a replacement pick, provide the existing model or markings, holder photographs and dimensions, cutting-head information, mounting position, and complete pick measurements. Similar-looking products are not automatically interchangeable.

MSD does not infer compatibility with unconfirmed roadheader machines, holders, or third-party product numbers. Existing drawings, photographs, samples, and previous MSD order information should take priority over a general product description.

For a non-standard requirement or a replacement not represented by the current specification table, send the available drawing, dimensions, photographs, or sample to MSD for separate technical and supply confirmation.

Roadheader Picks Manufacturer and Quotation Support

MSD is a China-based rock drilling and cutting tools manufacturer supplying carbide cutting tools for industrial excavation applications.

The MSD team can review the tunnelling or underground roadway application, 38 mm shank requirement, published dimensional fields, holder and cutting-head information, excavation conditions, photographs, drawings, samples, and required quantity before confirming an available model.

For a quotation, provide the excavation application, material and working conditions, equipment and cutting-head information, holder details, existing pick model or markings, measured dimensions, photographs, required quantity, and destination. This supports dimensional matching, application review, technical confirmation, and supply planning.
