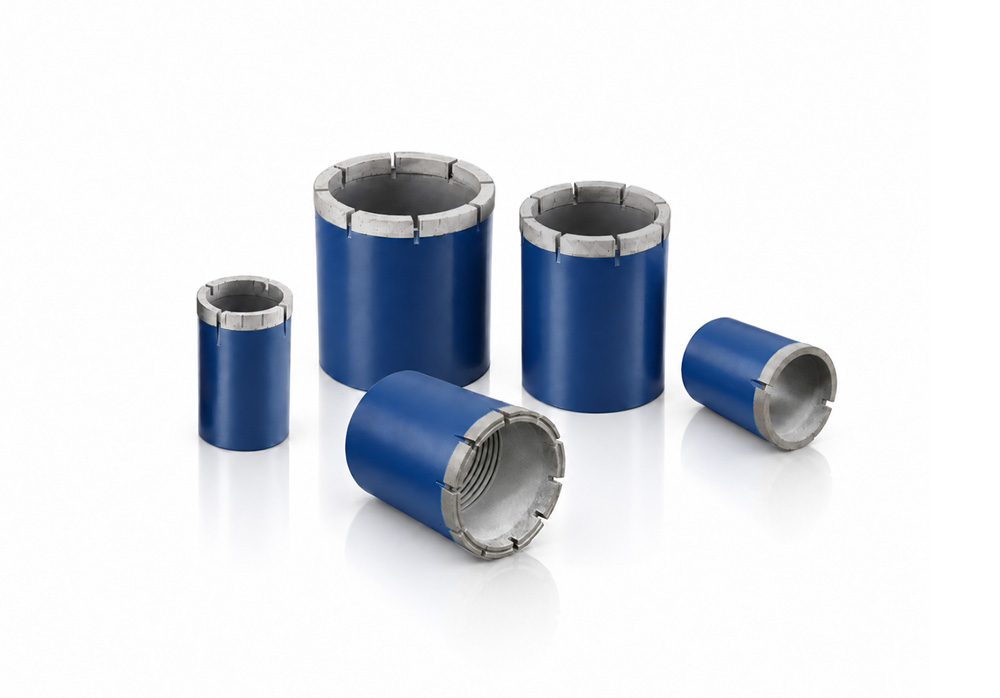

Diamond Casing Shoes

Diamond Casing Shoes for Exploration Core Drilling

MSD supplies diamond casing shoes for mineral exploration, geological exploration, mining exploration, wireline core drilling, and geotechnical core drilling.

A diamond casing shoe is installed at the lower end of the casing string. Its cutting area is positioned around the exterior and front of the shoe, helping the casing establish a path through suitable ground while the internal passage remains open for compatible core drilling tools.

This page covers casing shoes for exploration and diamond core drilling casing systems. The exact shoe must be matched to the casing, core barrel, core bit, connection, and required borehole arrangement.

How Diamond Casing Shoes Advance and Seat Casing

Diamond casing shoes are used to help drill, position, or seat casing during exploration core drilling. They are commonly considered where the casing must pass through suitable near-surface, unconsolidated, broken, or mixed ground before the planned coring interval is reached.

Cutting action is concentrated around the outside and front of the shoe so that material can be cleared around the casing diameter. The inside diameter must provide the required passage for the corresponding core drilling equipment without turning the shoe into the primary coring tool.

Casing advancement depends on formation structure, abrasiveness, particle size, casing alignment, flushing, rig capability, drilling parameters, and the condition of the complete casing system. A correctly specified shoe supports casing placement, but does not guarantee advancement in every ground condition.

Impregnated and Surface-Set Cutting Configurations

The current product range includes impregnated diamond and surface-set diamond cutting configurations. These terms describe the cutting arrangement of the diamond casing shoe, not separate core-bit products.

In an impregnated casing shoe, diamond particles are distributed through a metal matrix. Controlled matrix wear can expose new cutting points as the shoe works, but suitability still depends on formation abrasiveness, competency, fracturing, flushing, and operating conditions rather than hardness alone.

A surface-set casing shoe uses exposed diamond elements positioned on the cutting face. Diamond exposure and distribution influence cutting behavior, and selection should consider the formation, casing system, available rotation, flushing, and expected contact conditions without treating surface-set as an absolute soft-ground choice.

EW, AW, BW, NW, HW and PW Casing Systems

The current parameter table lists EW, AW, BW, NW, HW, and PW diamond casing shoe sizes for standard exploration drilling casing systems.

Each row identifies the Size / System, Outside Diameter, and Inside Diameter. The outside diameter relates to the cutting path for the casing, while the inside diameter must be checked against the required passage and the compatible drilling components.

Dimensions shown are nominal reference dimensions. They should not be treated as an absolute manufacturing-tolerance guarantee. Confirm the complete system designation, OD, ID, casing dimensions, thread or connection, and required clearances before ordering.

Diamond Casing Shoe Selection and Technical Review

Select a core drilling casing shoe according to the exact casing system, casing dimensions, connection, matching core barrel and bit, required outside cutting diameter, and minimum internal passage. Similar nominal size names do not by themselves confirm compatibility.

Formation information should include competency, consolidation, fracturing, abrasiveness, grain or particle structure, and any loose or mixed material. Drilling depth, flushing medium and flow, available rotation and torque, casing alignment, and rig capability also affect configuration review.

Impregnated and surface-set configurations should be compared against the combined formation and operating conditions. Neither configuration should be selected from a simple hard-rock versus soft-rock rule, and actual performance remains dependent on the complete drilling system and operation.

MSD is a China-based rock drilling tools manufacturer supplying exploration drilling tools and technical selection support. Standard configurations, replacement requirements, and non-standard requests can be reviewed before quotation and order confirmation.

Contact MSD for Diamond Casing Shoe Requirements

For a recommendation or quotation, provide the required EW, AW, BW, NW, HW, or PW system; nominal Outside Diameter and Inside Diameter; impregnated or surface-set cutting configuration; casing dimensions; thread or connection; and order quantity.

Also provide the matching core barrel and core bit, formation description, planned casing depth, flushing conditions, rig information, and whether the casing will be established, advanced, or seated in the stated ground conditions.

For replacement diamond drilling casing shoes, send the existing markings, measured OD and ID, photographs, drawings, connection details, and wear condition. MSD can compare the information with the nominal reference dimensions and review an available configuration for technical confirmation.
