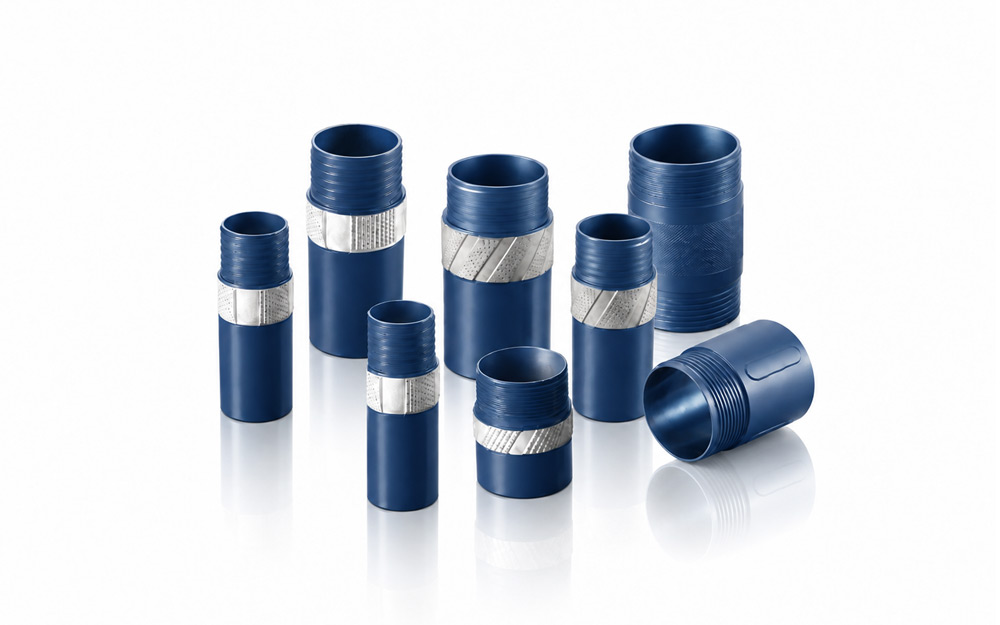

Reaming Shells

Reaming Shells for Diamond Core Drilling

MSD supplies reaming shells for mineral exploration, geological exploration, mining exploration, wireline core drilling, and geotechnical core drilling.

A diamond reaming shell is installed directly behind the core bit as part of the core barrel assembly. It follows the bit through the borehole to help maintain the required hole gauge and stabilize the lower section of the core barrel.

The core bit remains the primary cutting and coring component. A reaming shell is the supporting gauge-maintenance and stabilization component behind it; it does not replace the core bit or perform the core-cutting function.

How a Reaming Shell Maintains Borehole Gauge

As the core bit advances, the set outside diameter of the reaming shell follows the newly cut borehole. Its reaming section contacts the borehole wall where required to maintain or restore gauge behind the bit.

Gauge loss can reduce clearance around the core barrel and drill string, affect flushing and barrel travel, and create additional resistance when equipment moves through the hole. The shell therefore supports consistent borehole clearance during the coring operation.

Reaming-shell wear should be monitored as part of normal drilling-tool inspection. Formation abrasiveness, fractured ground, drilling depth, flushing, alignment, operating load, and the condition of the matching bit can all influence gauge wear and system response.

Core Barrel Stabilization and System Performance

A core drilling reaming shell provides an additional gauge-contact point close to the bit. This helps support the lower core barrel, limit unnecessary lateral movement, and promote smoother travel through the maintained borehole.

Stabilization depends on the complete assembly rather than the shell alone. Core-bit gauge, shell condition, outer-tube stiffness, connections, barrel length, formation structure, borehole clearance, and operating practice all affect downhole behavior.

A suitable shell can support control of gauge and barrel movement, but it does not guarantee hole straightness. Borehole direction remains influenced by geology, drill-string configuration, equipment condition, setup, and drilling parameters.

Standard Wireline, Long-Ring and Metric Configurations

The current range is organized into Standard Wireline, Long-Ring Type, and Metric Series configurations. Standard Wireline rows cover BWL, NWL, HWL, and PWL; Long-Ring Type rows cover BWL, NWL, and HWL; the Metric Series includes the listed T2 and T6 systems.

The parameter tables identify Standard OD, Oversize OD, and Hard-Metal Strips Available for the applicable rows. Long-Ring Type configurations also include Ring Length B. Hard-metal strip availability is shown as “Yes” for the current Standard Wireline and Long-Ring rows, while availability varies within the Metric Series.

Dimensions shown are nominal reference dimensions. They should not be treated as an absolute production-tolerance guarantee. Use the complete parameter row and confirm the required system, outside diameter, oversize requirement, ring length, and manufacturing tolerance before ordering.

Reaming Shell Selection and Technical Review

Select a wireline reaming shell according to the exact core-barrel system, matching core bit, thread and connection arrangement, required hole gauge, and published outside diameter. Similar nominal names do not by themselves confirm dimensional or connection compatibility.

Standard and oversize configurations serve different system requirements. An oversize shell should be reviewed with the corresponding oversize bit, target borehole clearance, formation condition, and complete barrel assembly rather than used as a general-purpose enlargement tool.

A long-ring reaming shell provides an extended reaming section for relevant systems. Its suitability depends on the required stabilization, barrel configuration, Ring Length B, formation, flushing clearance, torque response, and compatibility with the complete assembly.

MSD is a China-based rock drilling tools manufacturer supplying exploration drilling products and technical selection support. Standard configurations, replacement requirements, and non-standard requests can be reviewed before quotation and order confirmation.

Contact MSD for Reaming Shell Requirements

For a recommendation or quotation, provide the required Standard Wireline, Long-Ring Type, or Metric Series system; exact Size / System designation; standard or oversize requirement; required outside diameter; Ring Length B where applicable; hard-metal strip requirement; and order quantity.

Also provide the matching core bit, core-barrel model, thread and connection details, formation description, drilling depth, flushing conditions, and any gauge, stabilization, or barrel-travel issue observed during drilling.

For a replacement exploration reaming shell, send the existing markings, measured dimensions, photographs, drawings, connection details, and wear condition. MSD can compare this information with the nominal reference dimensions and review an available configuration for technical confirmation.
