Explore MSD 18-24 inch DTH bits in confirmed 550–1000 mm diameters for large-diameter drilling applications, bit-shank verification, and configuration selection.

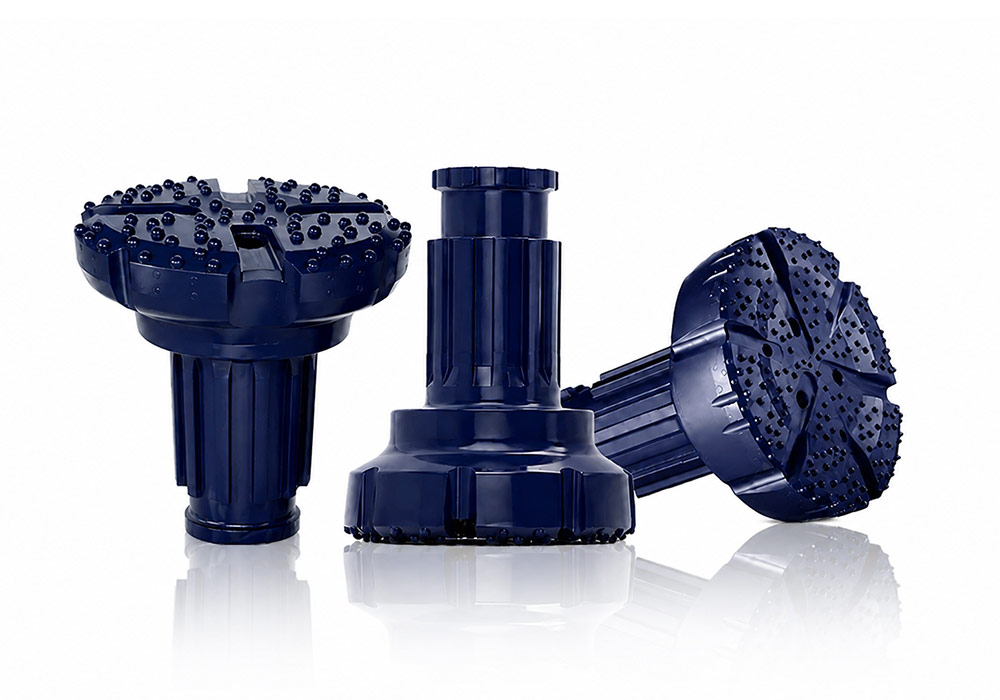

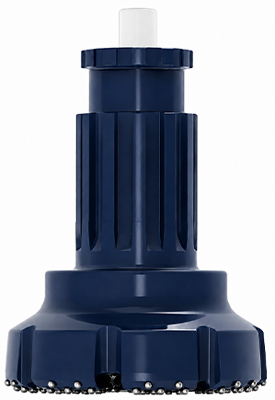

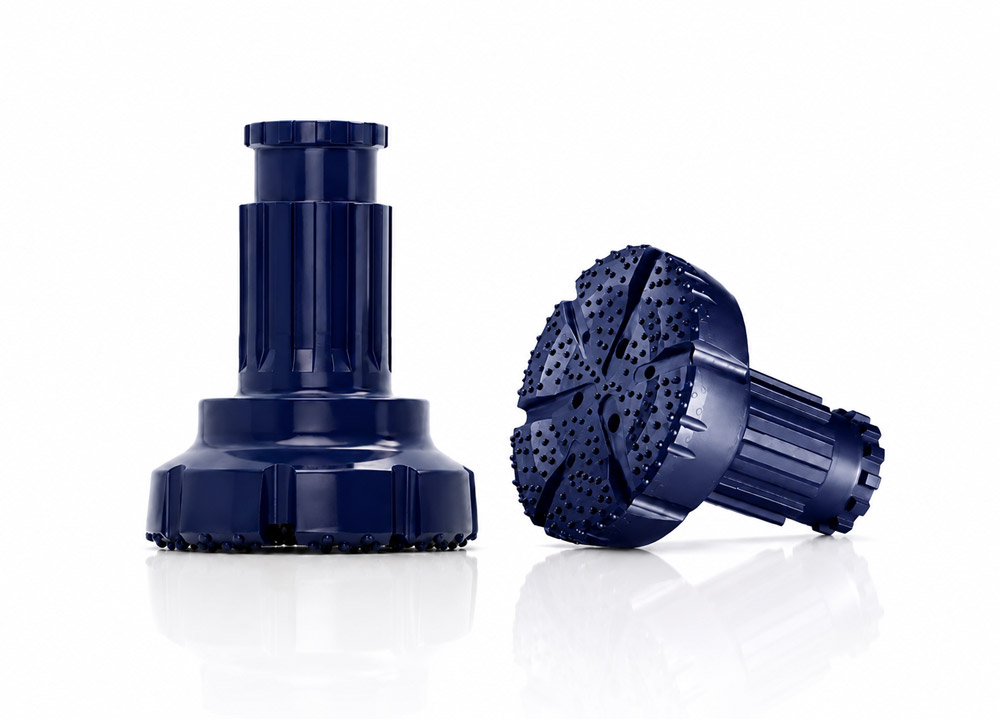

MSD supplies 18-24 inch DTH bits for large-diameter drilling configurations. The current parameter table contains five confirmed diameters: 550, 600, 700, 800, and 1000 mm. These configurations use different Gauge Button, Front Button, Back Button, Air Hole, and Weight specifications according to diameter. The current parameter table does not identify a named Bit Shank, Face Design, Button Shape, or Spline configuration. The required Bit Shank must therefore be verified against the exact hammer model, existing bit, drawing, dimensions, or sample before ordering. The 18-24 Inch designation is the page’s nominal product classification and does not redefine the actual millimeter diameters listed in the parameter table.
| Image | Diameter (mm) | Gauge Buttons | Front Buttons | Back Buttons | Air Holes | Weight (kg) |
|---|---|---|---|---|---|---|
 | 550 | 24×Ø20 mm | 20×Ø20 mm + 36×Ø19 mm + 33×Ø16 mm | 12×Ø12 mm | 6 | 460 |
| 600 | 24×Ø20 mm | 24×Ø20 mm + 60×Ø20 mm + 56×Ø16 mm | 24×Ø14 mm | 6 | 570 | |
| 700 | 48×Ø20 mm | 48×Ø20 mm + 60×Ø19 mm + 73×Ø18 mm | 48×Ø16 mm | 6 | 630 | |
| 800 | 30×Ø20 mm | 24×Ø20 mm + 60×Ø20 mm + 90×Ø18 mm | 12×Ø16 mm | 6 | 680 | |
| 1000 | 48×Ø20 mm | 36×Ø20 mm + 192×Ø20 mm + 81×Ø18 mm | 18×Ø16 mm | 6 | 984 |
0
APPLICATIONS
CASE STUDIES
MSD Concentric Casing System achieved 100% hole completion across 36 water wells in South
Read More
MSD T51-115mm thread button bit achieved 25% faster drilling and 30% longer life at Austra
Read More
MSD DTH hammer + drill pipe system achieved 24% faster drilling and 26% lower cost at Braz
Read More
MSD QL60-178 DTH bit achieved 340m per bit and 35% lower drilling cost in Russian hard roc
Read More
MSD custom 500mm DTH bit achieved zero structural failures and 40% efficiency gain in Taiw
Read MoreMSD supplies 18-24 inch DTH bits for large-diameter drilling applications. The current parameter table includes five confirmed bit diameters: 550, 600, 700, 800, and 1000 mm.
The 18-24 Inch designation defines the nominal product category. Final selection must be based on the actual diameter and complete configuration rather than the nominal inch classification alone.
The current parameter table contains one combined 18-24 Inch DTH Bits configuration group. It does not list MSD18A, MSD24A, or another named Bit Shank.
The confirmed diameter configurations are 550, 600, 700, 800, and 1000 mm. Each diameter has its own Gauge Button, Front Button, Back Button, Air Hole, and Weight specifications.
Because no named Bit Shank is provided in the current parameter table, the required Shank must be confirmed from the exact hammer model, current bit marking, Shank drawing, dimensions, or physical sample before the configuration is approved.
Large-diameter DTH bit selection requires the Hammer Model, verified Bit Shank, required bit and finished hole diameters, drilling system, and working conditions to be reviewed together.
Diameter alone does not establish compatibility. The drill rig, drill string, available air supply, rock formation, hole depth, rotation arrangement, lifting capacity, and handling conditions may also affect the final configuration.
The exact parameter row for the selected diameter should be used when confirming the Button configuration, Air Holes, Weight, and associated drilling-system requirements.
The current parameter table provides Gauge Button, Front Button, Back Button, and Air Hole information. Face Design and Button Shape are not listed and should not be assumed from the nominal product classification.
550 mm — 24×Ø20 mm Gauge Buttons, 20×Ø20 mm + 36×Ø19 mm + 33×Ø16 mm Front Buttons, 12×Ø12 mm Back Buttons, and 6 Air Holes.
600 mm — 24×Ø20 mm Gauge Buttons, 24×Ø20 mm + 60×Ø20 mm + 56×Ø16 mm Front Buttons, 24×Ø14 mm Back Buttons, and 6 Air Holes.
700 mm — 48×Ø20 mm Gauge Buttons, 48×Ø20 mm + 60×Ø19 mm + 73×Ø18 mm Front Buttons, 48×Ø16 mm Back Buttons, and 6 Air Holes.
800 mm — 30×Ø20 mm Gauge Buttons, 24×Ø20 mm + 60×Ø20 mm + 90×Ø18 mm Front Buttons, 12×Ø16 mm Back Buttons, and 6 Air Holes.
1000 mm — 48×Ø20 mm Gauge Buttons, 36×Ø20 mm + 192×Ø20 mm + 81×Ø18 mm Front Buttons, 18×Ø16 mm Back Buttons, and 6 Air Holes.
If Face Design, Button Shape, Bit Shank, Splines, or another unlisted specification must be confirmed, provide the existing product specification, drawing, dimensions, photographs, or sample for technical review.
The listed Bit Diameter does not automatically confirm Hammer compatibility. A similar nominal inch classification also does not establish that a bit will fit a particular DTH hammer.
Final matching requires confirmation of the exact Hammer Model, verified Bit Shank, selected diameter, finished hole diameter, drilling requirements, and complete drilling-system configuration.
Because the current parameter table does not provide a named Bit Shank, all five configurations require Shank verification before Hammer matching is confirmed. Replacement orders should include the existing bit marking, Shank drawing, dimensions, photographs, or sample where available.
MSD 18-24 inch DTH bit configurations may be reviewed for mining, quarrying, water-well drilling, construction, foundation drilling, piling, and other large-diameter drilling applications.
Suitability depends on the required diameter, verified Bit Shank, Hammer Model, rock formation, hole depth, drilling system, rig capacity, air supply, and operating conditions. A configuration should not be selected from the application name or diameter alone.
To review an 18-24 inch DTH bit configuration, provide the following information:
Hammer Model — The exact DTH hammer model or complete drilling-system information.
Bit Shank — The required Shank designation, supported by a drawing, dimensions, photographs, or sample when necessary.
Diameter — The required bit diameter and finished hole diameter in millimeters.
Application — The intended mining, quarrying, water-well, construction, foundation, piling, or other drilling application.
Rock Formation — The relevant rock or ground condition.
Drilling Conditions — Hole depth, drill-rig information, drill string, available air supply, rotation arrangement, lifting capacity, and handling requirements.
For replacement orders, also provide the current bit model or marking and any available product specification, drawing, clear photographs, or sample. This information allows MSD to review the Shank, diameter, Button configuration, and complete drilling-system requirements before confirming the final configuration.
