What Is a MISSION Shank in DTH Drilling?

A MISSION shank is a splined DTH bit shank standard that inserts into a matching hammer's chuck, secured by a retaining ring rather than a threaded connection — like all DTH shank standards, never an API thread. DTH (Down-The-Hole) drilling is a percussion method where the hammer works at the bottom of the borehole, directly behind the bit, and shank geometry has to match the hammer chuck precisely to transfer rotation and percussion energy without loss.

Shank compatibility is ultimately a hammer-side question: it's the hammer chuck's spline geometry that determines which shank standard fits, not the bit alone. Confirming the correct DTH hammer model and its accepted shank standard before ordering replacement bits avoids the most common sourcing mistake — buying by nominal diameter without checking which shank the hammer chuck actually accepts.

MISSION shank model numbers in confirmed data run M40 through M80. This guide covers confirmed specifications for M40 through M80.

MISSION Shank Models — Bit Diameter, Air Pressure & Rotation Data

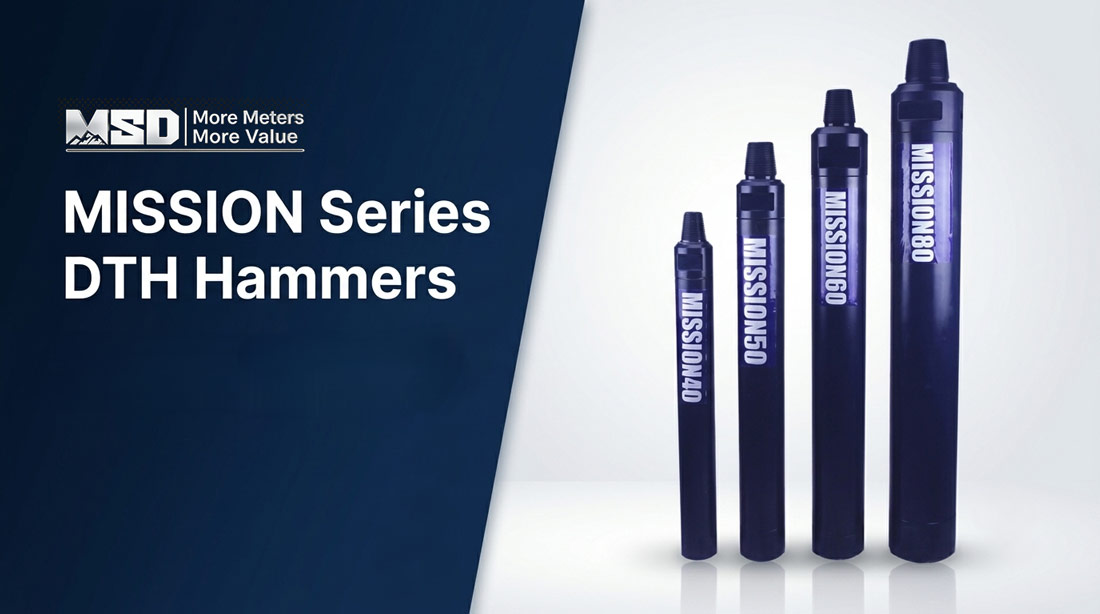

The table below lists confirmed MISSION shank specifications, drawn from MSD's own hammer/bit compatibility data.

Note: M50 and M60 have overlapping bit diameter coverage (155–190mm and 155–203mm respectively) at different air pressure ratings — confirm the exact model stamped on your hammer rather than selecting by bit diameter alone.

M40 — Entry Size in Confirmed Data

M40 covers 110–135mm at 1.2–2.0 bar, with the fastest impact rate in the range at 30 Hz and the widest rotation window at 25–40 r/min. It pairs with API 2 3/8" Reg drill pipe thread — the lightest thread class in the MISSION lineup.

M50 and M60 — Mid-Range Sizes

M50 steps up to 155–190mm at 1.3–2.3 bar and can pair with 2 3/8", 3 1/2", or 7/8" thread, giving it more rig flexibility than M40's single option. M60 covers 155–203mm at 1.5–2.5 bar, with impact rate dropping to 25 Hz and thread moving up to 3 1/2" Reg.

M80 — Largest Confirmed Size

M80 covers 195–254mm at 1.5–3.0 bar, the largest confirmed bit diameter in the MISSION range, with the lowest impact rate (22 Hz) and rotation speed (15–25 r/min) — consistent with larger DTH shanks trading rotation and impact frequency for higher per-blow energy. M80 pairs with API 4 1/2" Reg, the heaviest thread class confirmed for this shank standard.

Where's M30? MISSION's Confirmed Range Actually Starts at M40

If you've seen "M30" referenced alongside MISSION shank sizing, here's what's worth knowing: current MSD compatibility data has no confirmed M30 record. The smallest confirmed MISSION model in this data set is M40, covering 110–135mm.

This kind of naming gap isn't unique to MISSION — other shank standards in MSD's data show similar edges (for example, QL's confirmed range has a gap between QL80 and QL200). If you're speccing a hammer for a sub-110mm bore and see "M30" on a distributor catalog, confirm the exact spec sheet directly with the manufacturer rather than assuming it follows the same pattern as M40.

Mission vs. SD Shank — Are They the Same?

MISSION and SD shanks are not automatically interchangeable, even though they're sometimes listed side by side in distributor catalogs and show similar bit diameter ranges in some size classes (M50/M60 vs. SD5/SD6 cover near-identical diameters in confirmed data). Shank diameter, spline count, and engagement length can still differ by size and manufacturer even where the diameter range looks the same on paper. Always verify the shank marking stamped on your existing bit or hammer chuck specification sheet before assuming compatibility between the two standards — matching nominal diameter alone is not sufficient confirmation.

Selecting the Right MISSION Shank Bit

Matching Compressor Output to MISSION Size

Air consumption scales with size — M40 needs as little as 5 m³/min at 1.0 bar, while M80 needs up to 28 m³/min at 2.4 bar. Before committing to an M60 or M80 bit, confirm your compressor's rated output against the air consumption figures above; underpowering a larger MISSION shank reduces both rotation speed and flushing effectiveness before the bit itself shows wear.

Rock Formation and Button Selection

Button shape selection is independent of shank size but should match formation hardness — spherical buttons for highly abrasive hard rock, ballistic buttons for softer to medium-hard formations where penetration rate is the priority, and conical buttons as a balanced option in medium-hard rock. This decision applies across mining drilling, water well drilling, and construction drilling alike, since formation hardness — not the application category itself — is what drives button choice.

Rule of Thumb: Select the smallest MISSION shank size whose confirmed bit diameter range covers your target hole, then confirm your compressor can deliver sufficient air volume at the hammer's minimum operating pressure — an undersized compressor starves the hammer of air and reduces penetration rate more than choosing a slightly smaller bit would.

Drill Pipe Thread Considerations

Drill pipe thread steps up through the range — API 2 3/8" Reg for M40, up through 3 1/2" and 4 1/2" Reg for M60/M80. Confirming the correct thread size alongside the shank model prevents a mismatch further up the string — pair the bit with correctly rated DTH drill pipes rather than assuming thread size scales the same way bit diameter does.

MISSION Shank Maintenance — What to Check Between Runs

Check the shank regularly for spline wear at the drive face, the surface that transmits rotational torque from the hammer chuck. Visible rounding at the spline edges, elongation in the retaining ring groove, or a noticeably looser fit against the chuck are the signs to catch before they cause a stuck bit or accelerated chuck wear. Because impact rate and rotation both drop as MISSION size increases (compare M40's 30 Hz / 25–40 r/min against M80's 22 Hz / 15–25 r/min), larger sizes spend more cycles under higher per-blow load for the same drilled distance — worth factoring into how often you schedule inspections as you move up the size range.

Pair shank inspection with routine pneumatic DTH hammer chuck and piston checks, since a worn chuck accelerates shank wear on every bit that runs through it afterward.

For documented field performance patterns across different shank types and formations, see MSD's real-world drilling projects records, available for review during technical consultation.

Frequently Asked Questions

• Q: What bit diameter does M40 cover, and is there a smaller MISSION size?
  A: M40 covers 110–135mm and is the smallest confirmed size in current MISSION data. If "M30" appears in a supplier catalog, confirm its exact specification directly — it isn't part of current confirmed compatibility data.

• Q: Is a MISSION shank the same as an SD shank?
  A: Not automatically. Some size classes (M50/M60 vs. SD5/SD6) cover similar bit diameter ranges, but shank diameter, spline count, and engagement length can still differ. Always verify the shank marking before assuming interchangeability.

• Q: What drill pipe thread does an M80 bit need?
  A: M80 pairs with API 4 1/2" Reg, the heaviest thread class confirmed in the MISSION range. Smaller sizes step down through 3 1/2" and 2 3/8" Reg as bit diameter decreases.

• Q: Why does rotation speed drop as MISSION shank size increases?
  A: Larger MISSION shanks (M60, M80) deliver more impact energy per blow, and hammer design trades rotation speed for that added energy. M80 runs 15–25 r/min versus M40's 25–40 r/min — a normal design tradeoff, not a defect.

• Q: Can an M60 bit fit a DHD- or SD-branded 6-inch hammer?
  A: No. Matching nominal diameter isn't enough — MISSION, DHD, and SD are separate shank standards with different spline and chuck geometry. Always confirm the shank standard stamped on the hammer's chuck housing before ordering.
